NZ MMM Uniclean® PL II 15 and 30 Washer Disinfector Racks & Inserts
Genuine MMM racks and inserts to suit Uniclean® PL II 15 and PL II 30 Washer Disinfectors.
The loading rack and accessory system for the Uniclean® PL II 15 and PL II 30 washer disinfectors has been developed in close collaboration with healthcare professionals and medical device manufacturers to ensure it meets the practical demands of high-performance CSSD environments. The result is a highly adaptable and versatile solution that supports the effective reprocessing of everything from standard surgical instruments through to complex and specialised medical devices.
Designed to maximise cleaning efficiency and workflow flexibility, the rack system enables loading from all sides and supports a wide range of configurations to suit different instrument types and volumes. Its symmetrical docking design ensures consistent water distribution across all levels, helping to deliver reliable and repeatable cleaning and disinfection results. The modular construction allows facilities to tailor configurations to their specific requirements, while maintaining optimal spray access and minimising shadowing during the wash process.
Durability and usability are central to the design. Constructed from robust stainless steel, the racks feature an open structure that promotes thorough cleaning, effective drying and efficient drainage. Ergonomic handling is supported through intuitive rack positioning, flexible rotation during loading, and heat-resistant handles that enhance operator safety when handling hot loads. Multi-level configurations and dedicated connections for hollow instruments further support consistent reprocessing outcomes, making the system well suited to the demands of modern hospital reprocessing departments
Uniclean® PL II 15 and PL II 30
| Product Code | Product Description | Image | Quote |
|---|---|---|---|
| 010109308 | Transport trolley |
|
|
| 010125441 | Collection container for transport trolley |
|
|
| 10497835 | Transport trolley without drain |
|
|

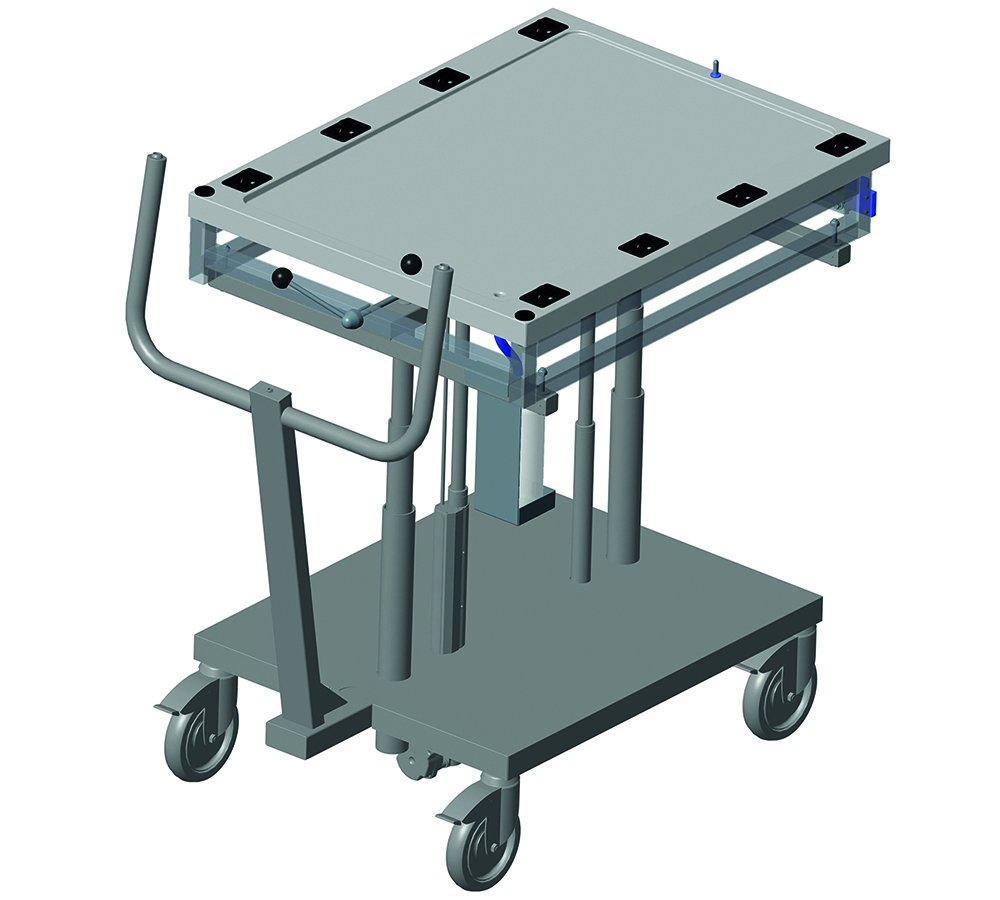

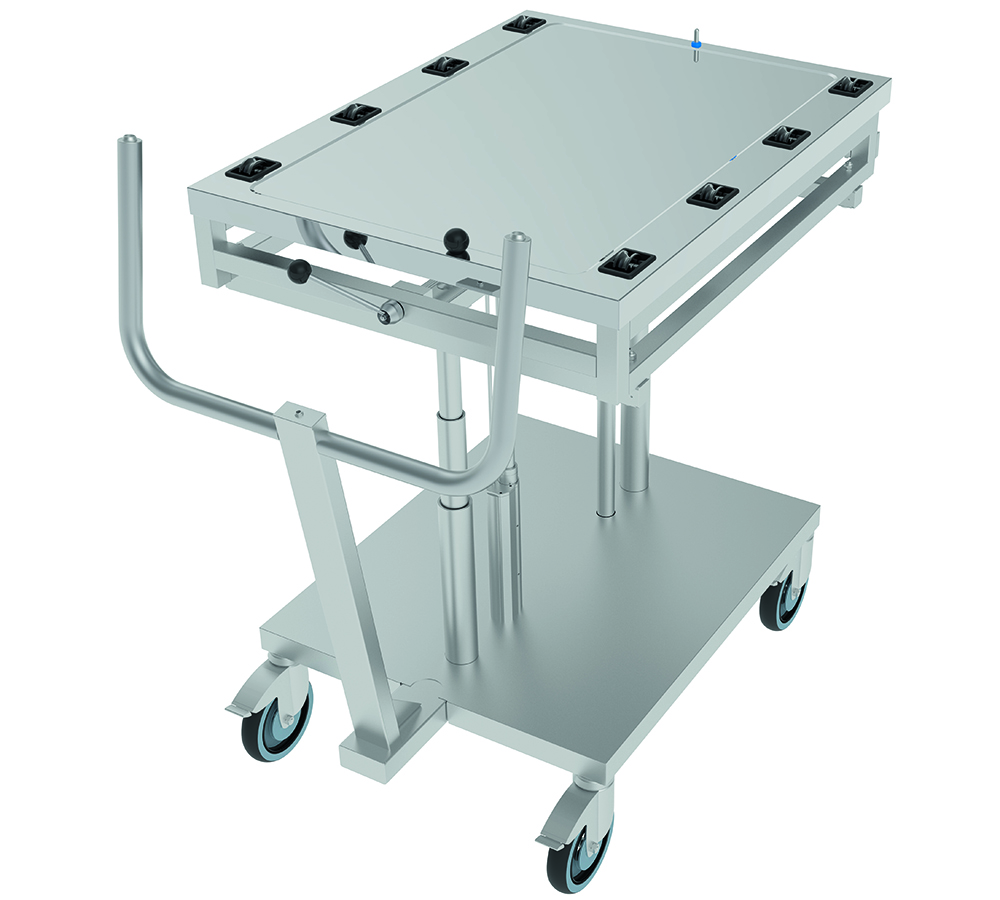

| 010109309 | Transport trolley height adjustable with drain |
|
|
| 010518961 | Transport trolley height adjustable without drain |
|
|

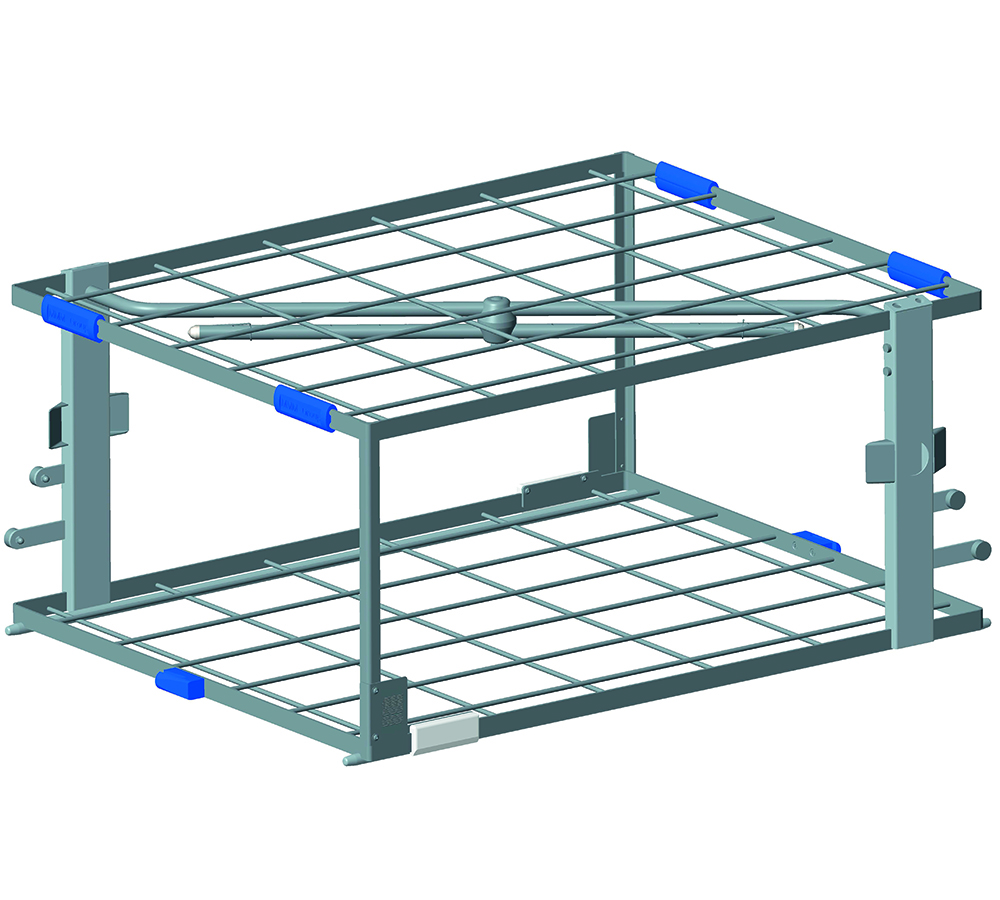

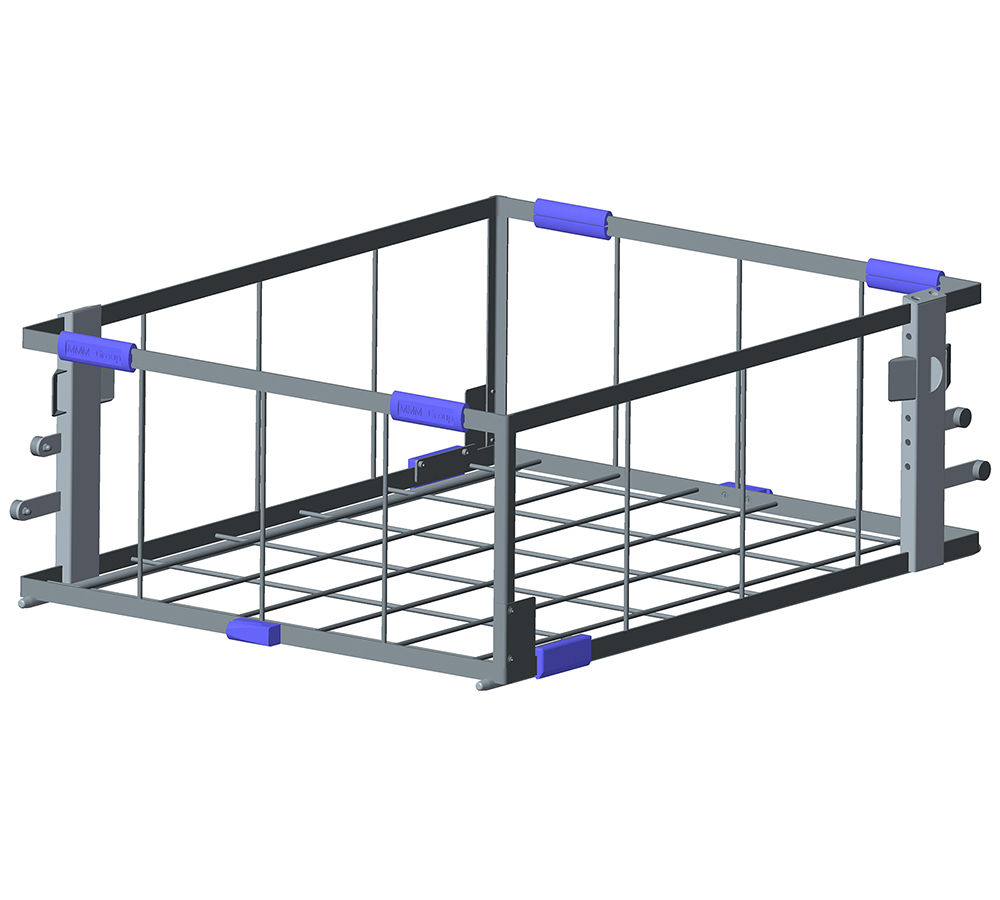

| 010109310 | Rack, 1-level |
|
|

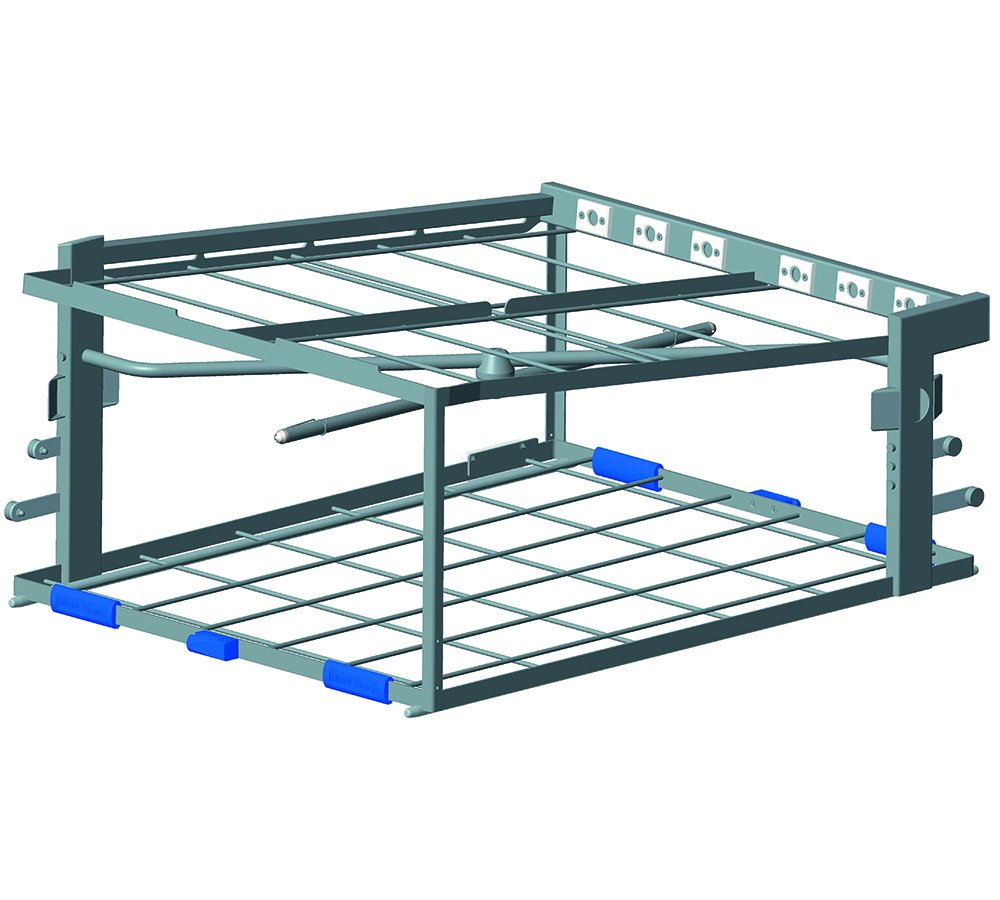

| 010109311 / 010548755* | Rack, 2-level (*Spray Arm Monitoring version) |
|
|
| 010109312 / 010548756* | Rack, 2-level S (*Spray Arm Monitoring version) |
|
|

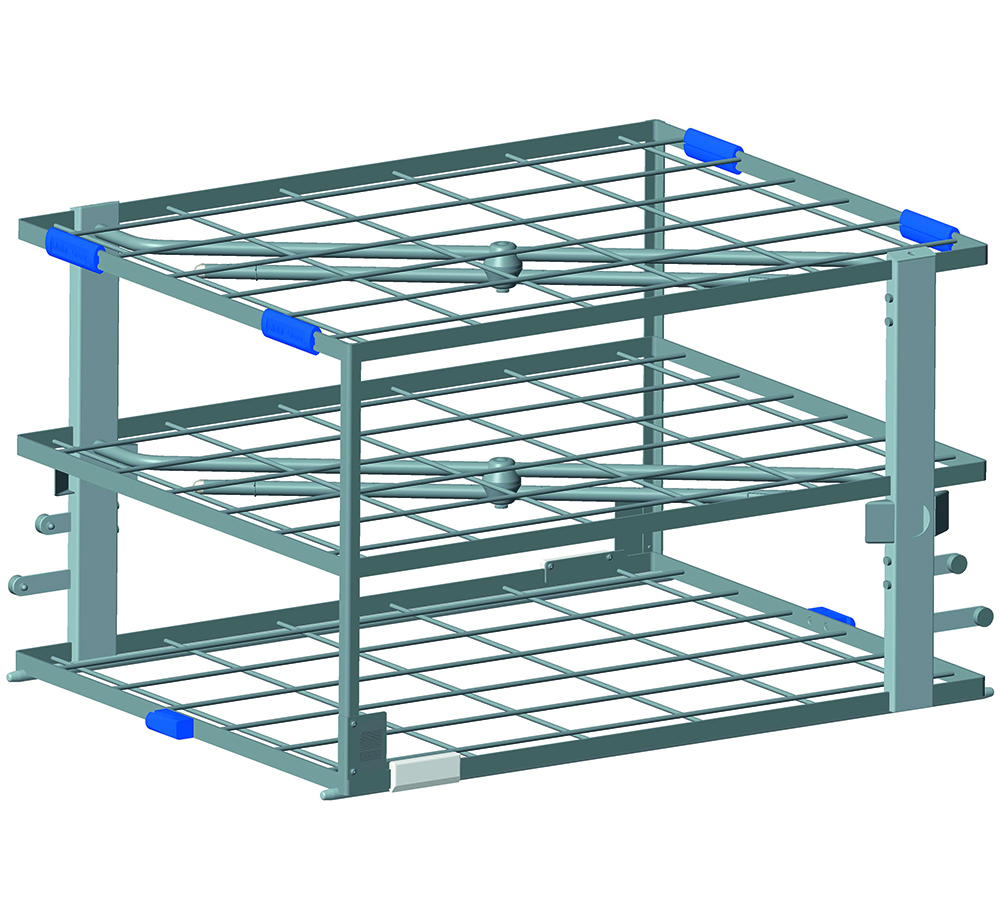

| 010109313 / 010548753* | Rack, 3-level (*Spray Arm Monitoring version) |
|
|

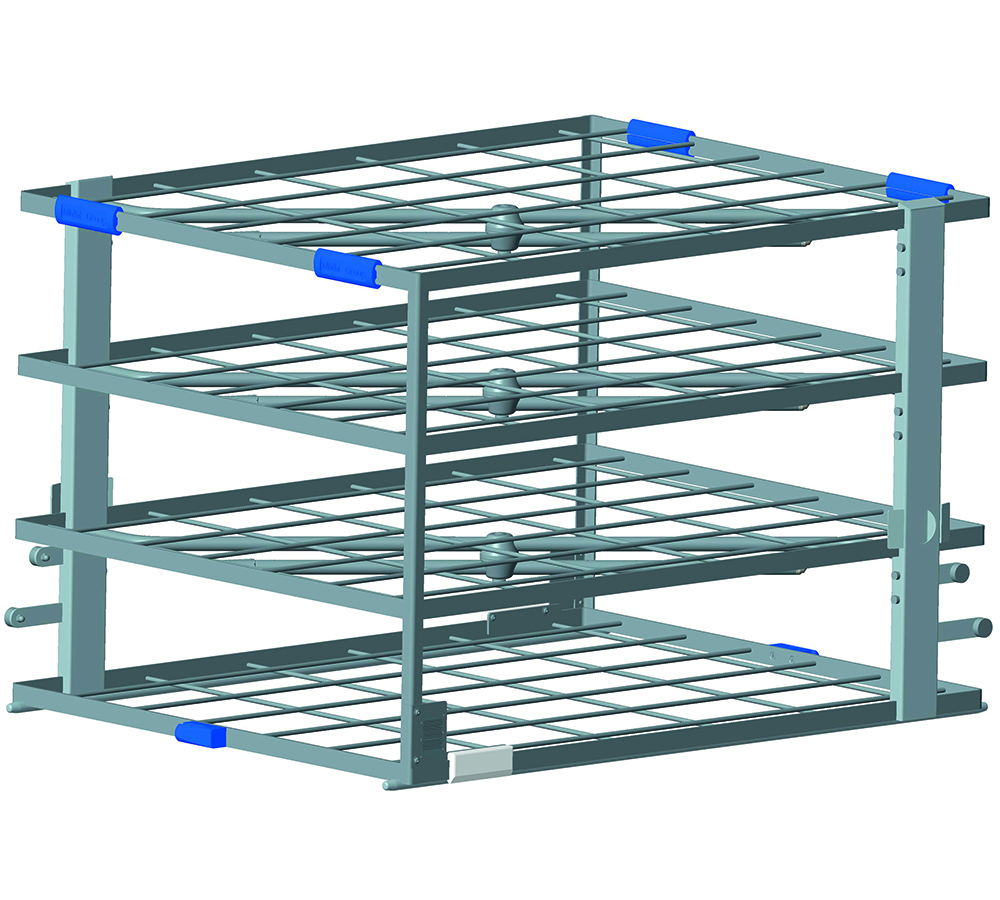

| 010109314 / 010548757* | Rack, 4-level (*Spray Arm Monitoring version) |
|
|
| 010109315 / 010548763* | Rack, 5-level (*Spray Arm Monitoring version) |
|
|

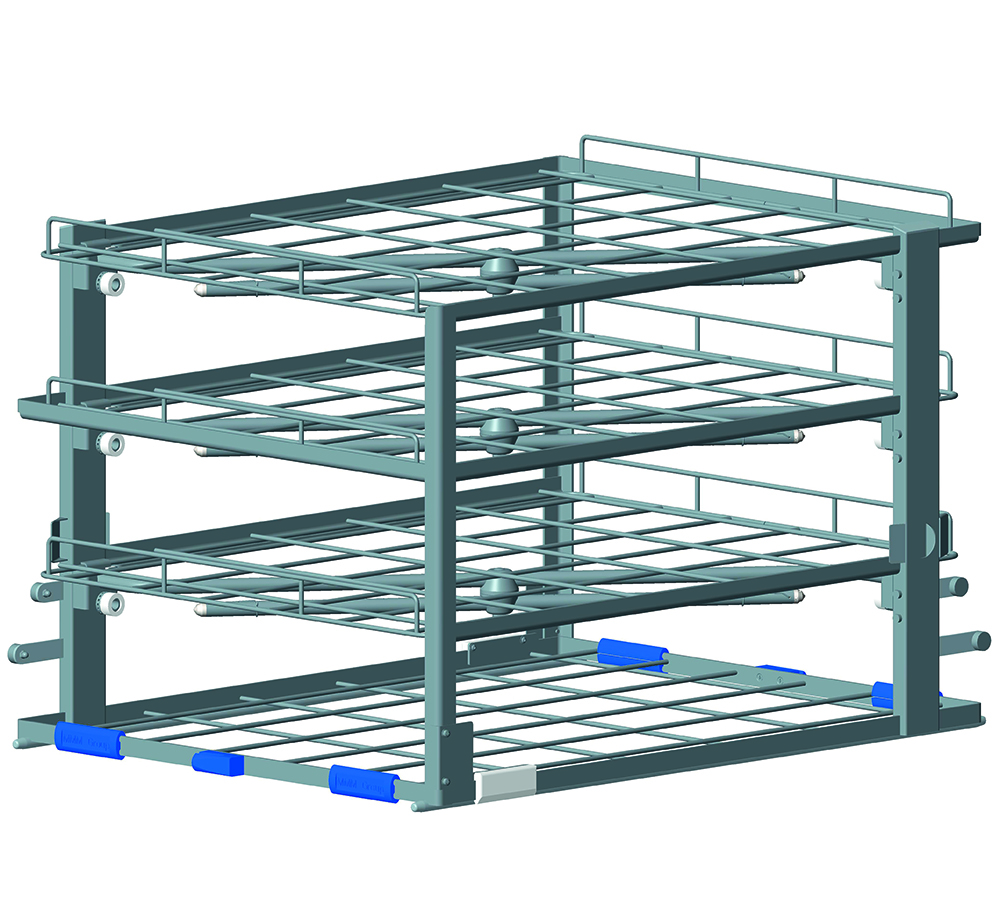

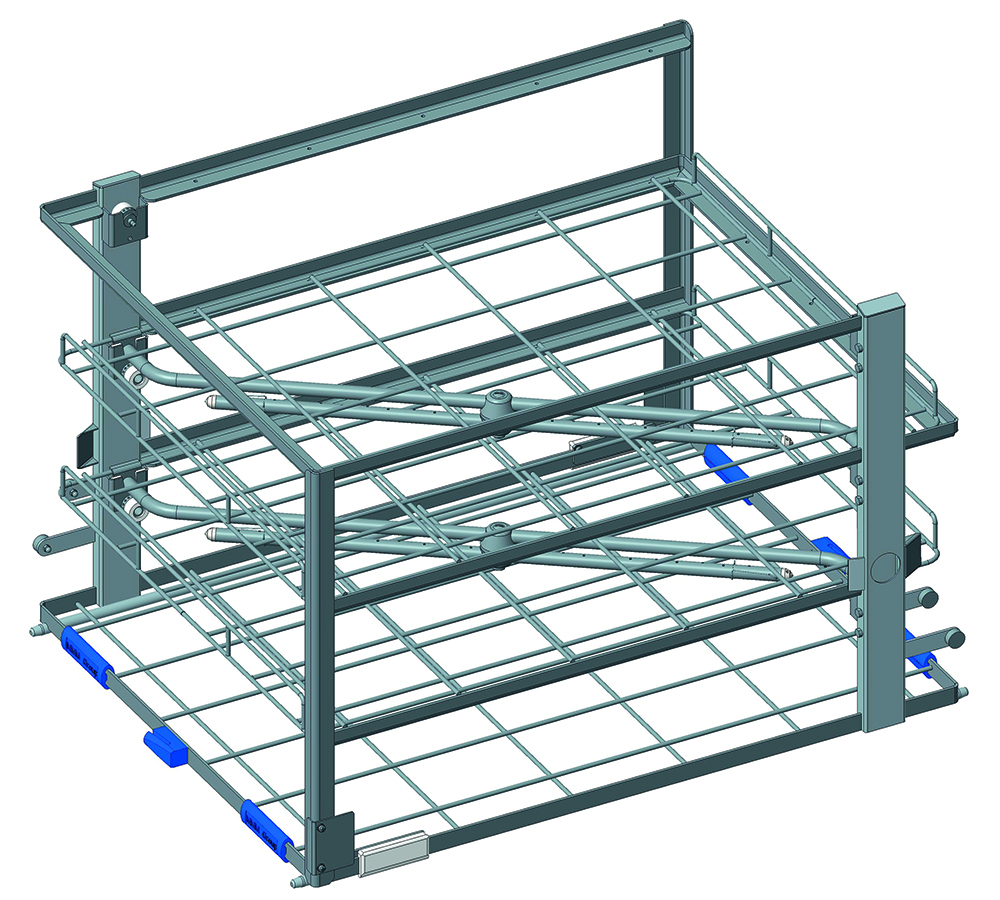

| 010508720 / 010549826* | Flex rack, 4-level (*Spray Arm Monitoring) |
|
|
| 010555564 / 010585563* | Flex rack, 5-level (*Spray Arm Monitoring) |
|
|
| 010509986 / 010548802* | Rack, 3-level with MIS strip 15 (*Spray Arm Monitoring) |
|
|
| 010508889 / 010548798* | Rack, 4-level with MIS strip 15 (*Spray Arm Monitoring) |
|
|
| 010508892 | MIS Strip 15 A |
|
|

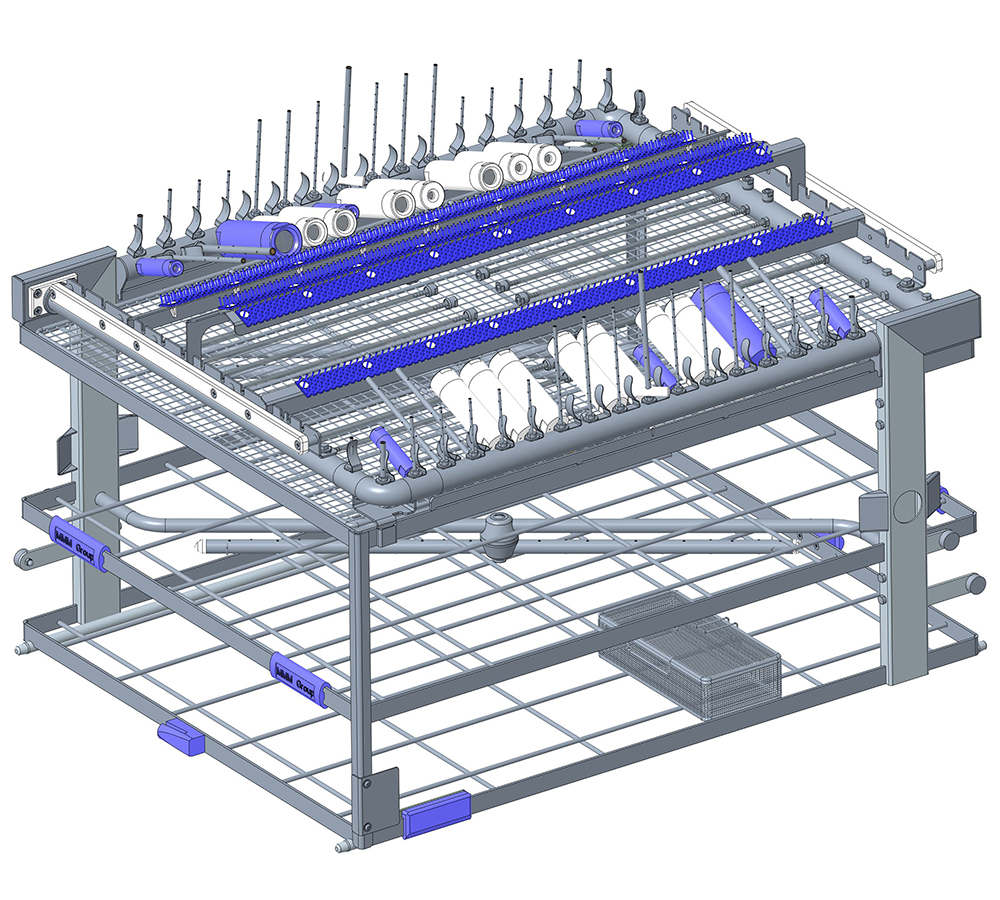

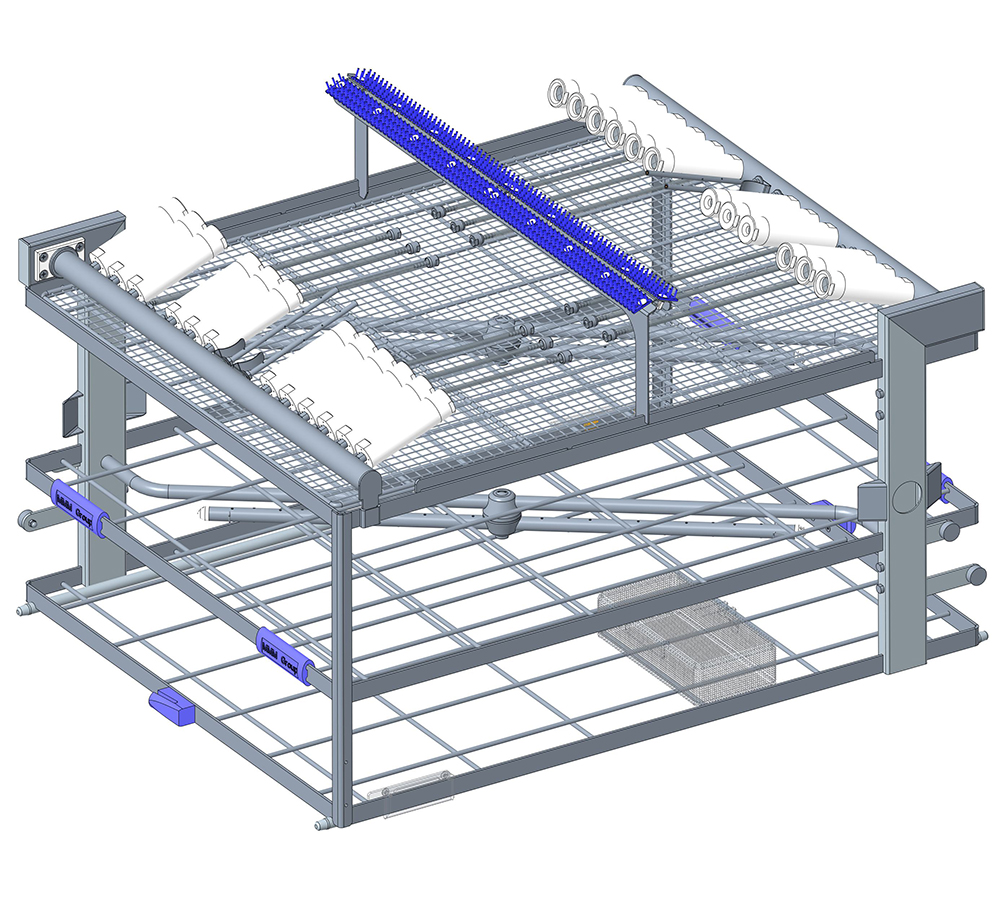

| 010612830/ 010635373* | Rack MIS 2.0 Basic 106 A (*Spray Arm Monitoring) |
|
|
| 010635307 / 010635374* | Rack MIS 2.0 Basic 42 A (*Spray Arm Monitoring) |
|
|
| 010612804/ 010626665* | Rack MIS 2.0 Basic (*Spray Arm Monitoring) |
|
|

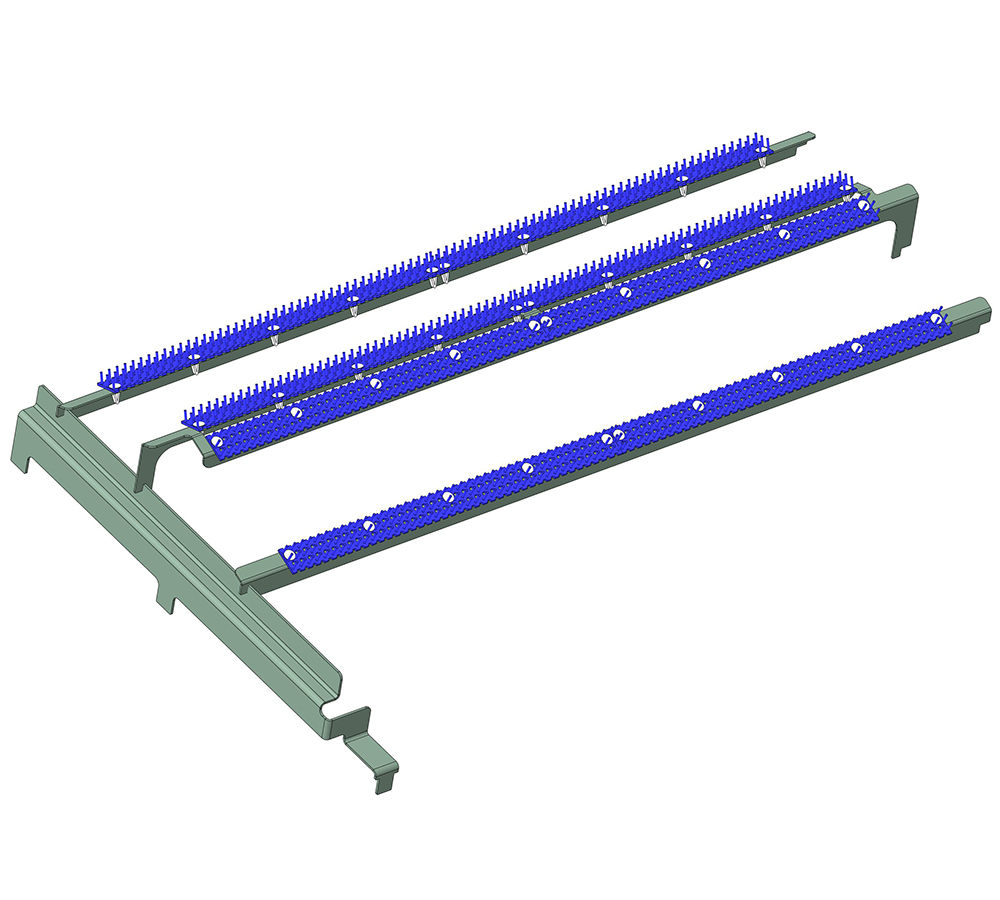

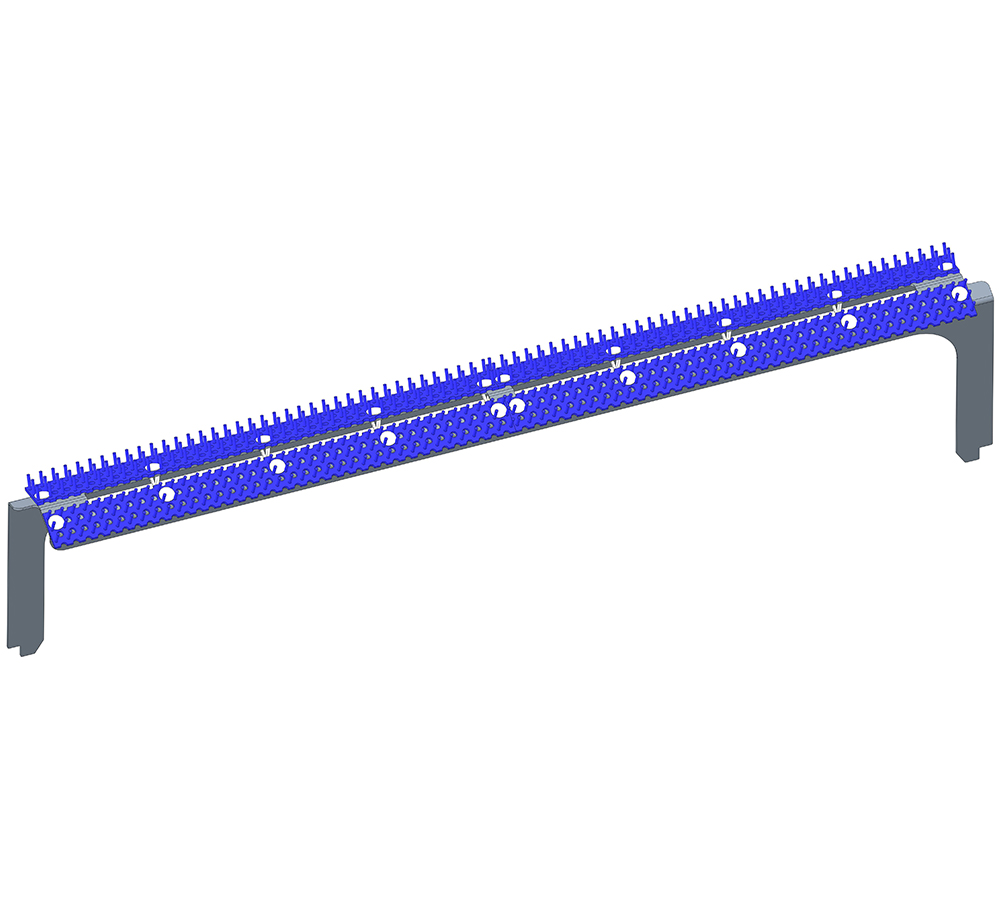

| 010626661 | MIS Strip 53 A (set of 2) |
|
|
| 010626660 | MIS Strip 21 A (set of 2) |
|
|
| 010626664 | Support rail for Rack MIS 2.0 53 A |
|
|
| 010626662 | Support rail for Rack MIS 2.0 21 A |
|
|
| 010548421 / 010548789* | MIS/eye rack with 2 module levels (*Spray Arm Monitoring) |
|
|
| 010508029 | MIS module short |
|
|
| 010508028 | MIS module long |
|
|
| 010508031 | Module for eye instruments |
|
|
| 010119757 | Insert tray for eye instruments |
|
|
| 010554840 | Filter securing mechanism |
|
|

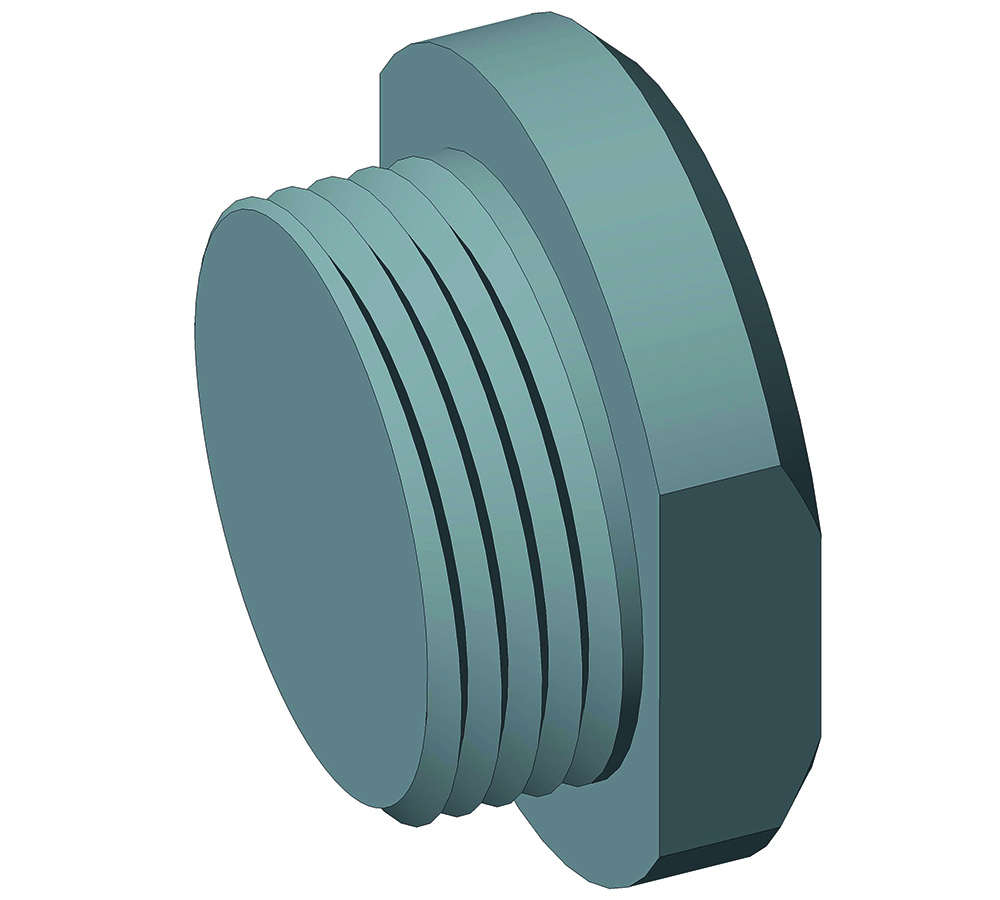

| 010508853 | Threaded connection, blind, M15x1 (set of 4) |
|
|

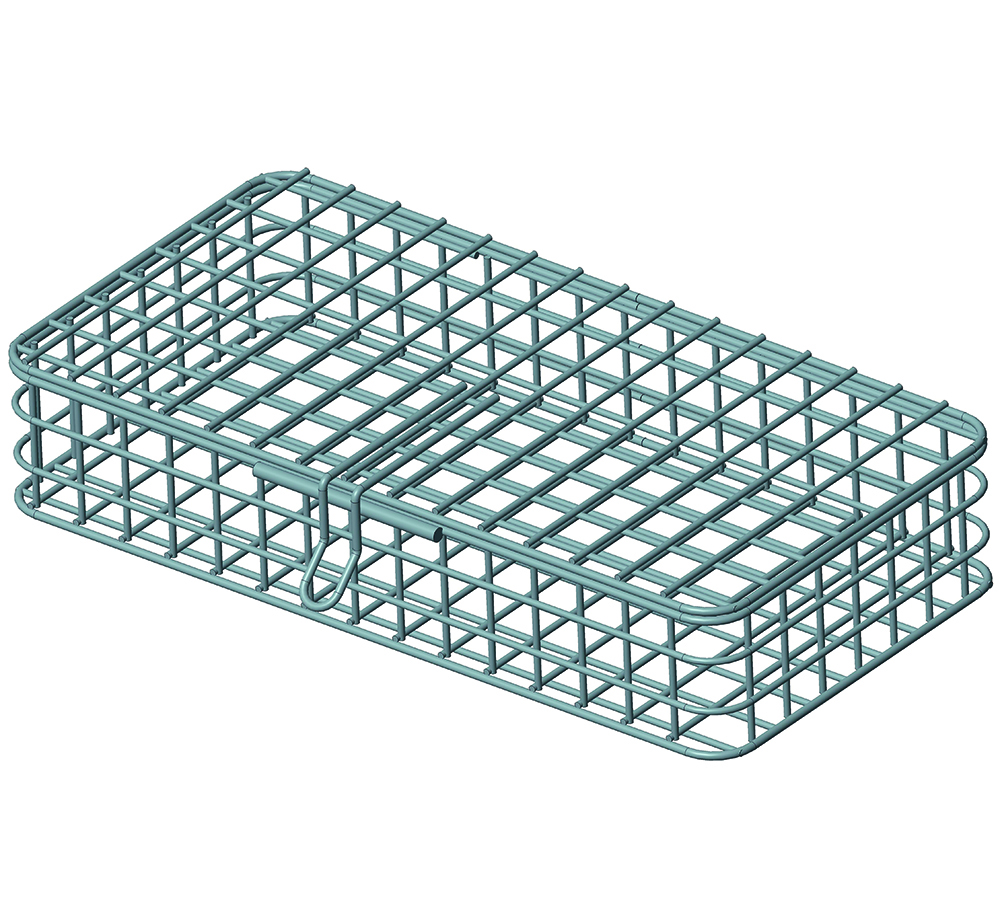

| 010491059 | Rack with lid |
|
|
| 010114078 | Tube drum small |
|
|

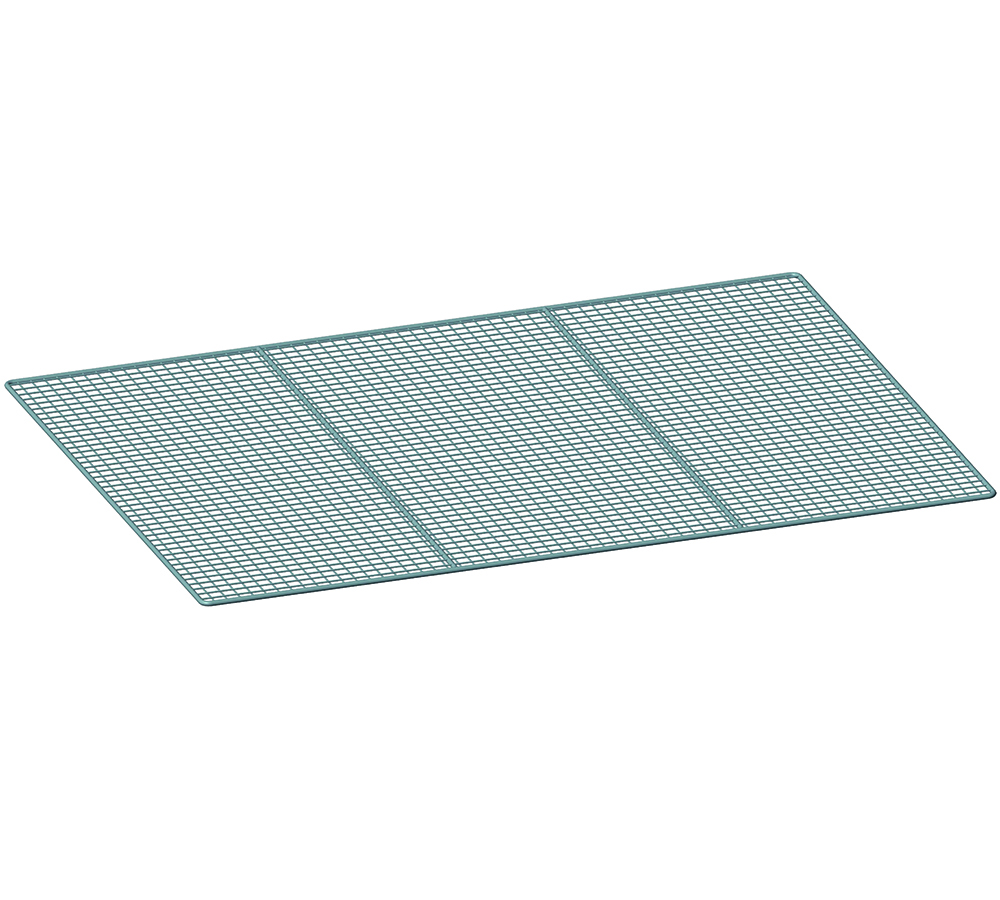

| 010489293 | Insert tray 772 x 578 mm |
|
|
| 010525951 | Flush strip for trocars |
|
|

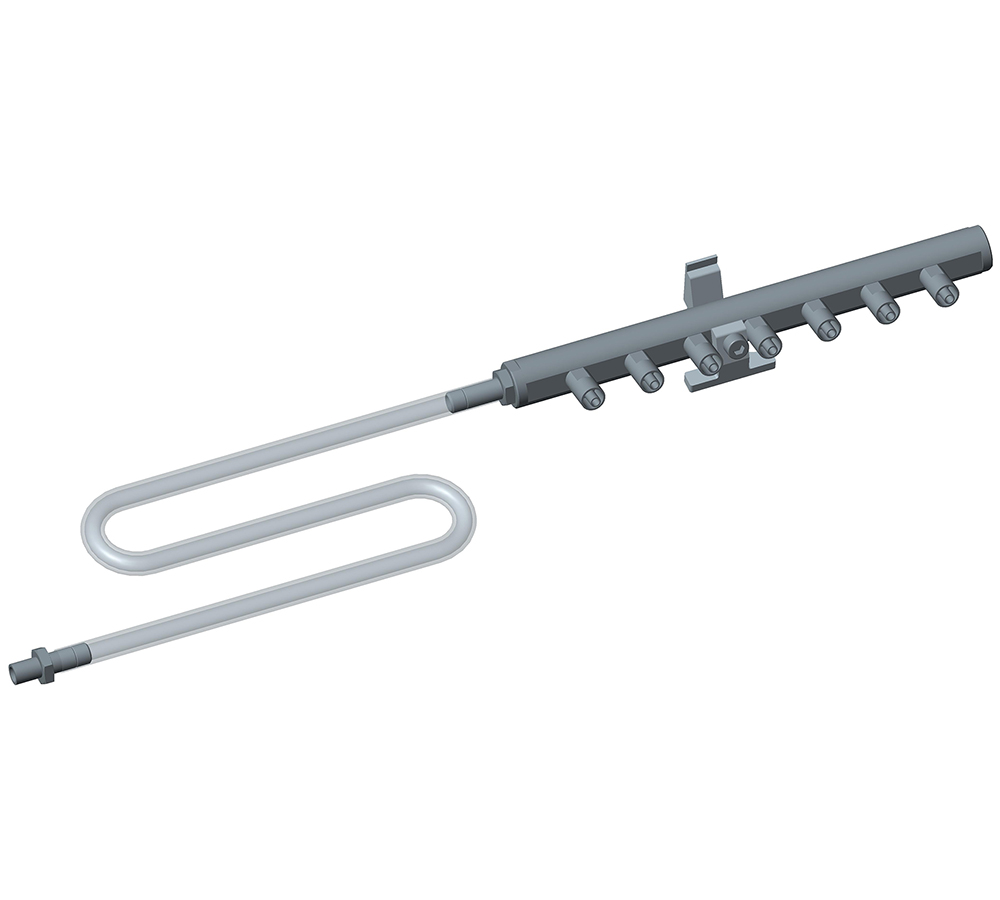

| 010119758 | Flush strip, straight |
|
|
| 010119759 | Flush strip, angled |
|
|

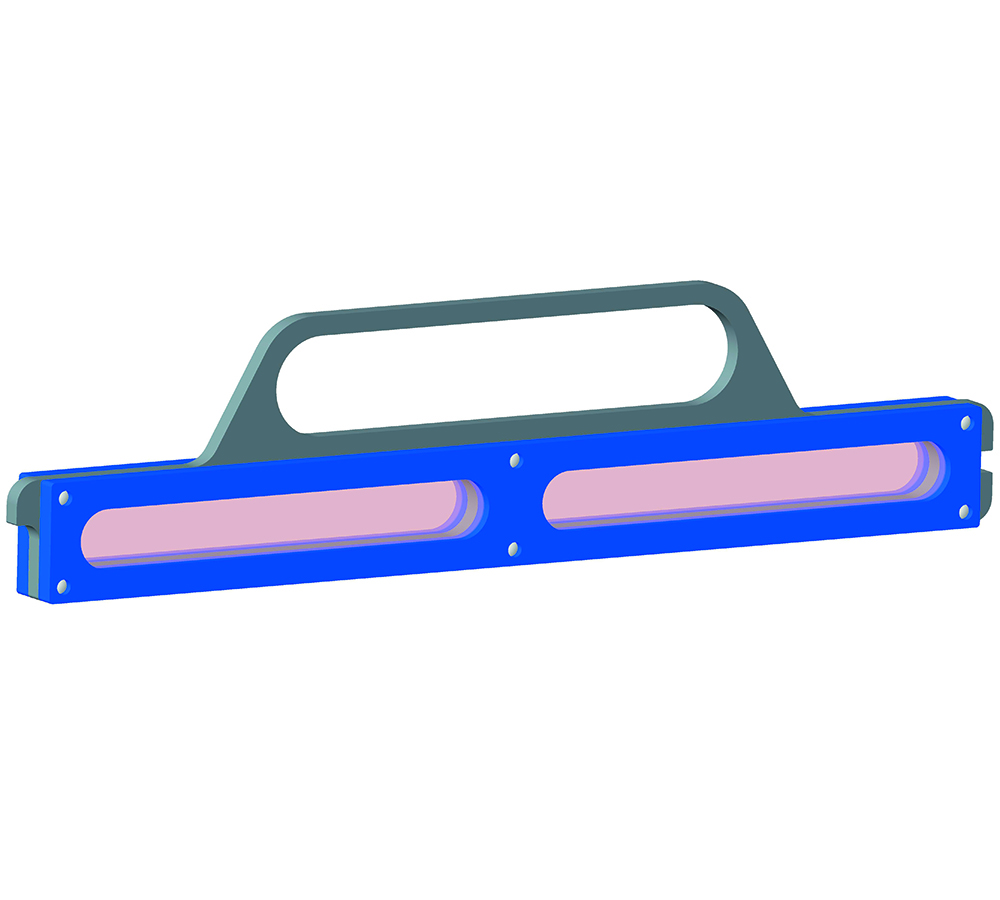

| 010504739 | Double filter for modules, complete |
|
|
| 010504955 | Replacement filter for modules (set of 2) |
|
|
| 010504744 | Securing socket for double filter (set of 2) |
|
|

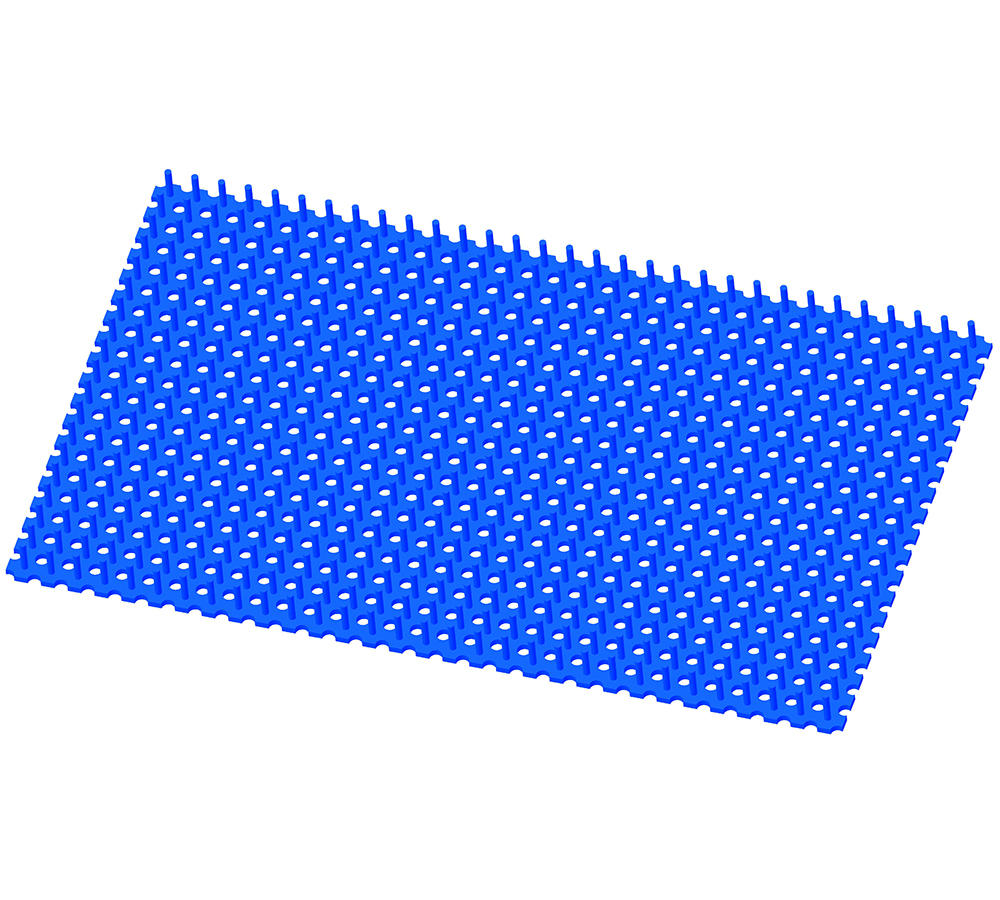

| 010503483 | Silicone mat 250 x 530 mm |
|
|
| 010531553 | Insert module for small DIN trays with lid |
|
|

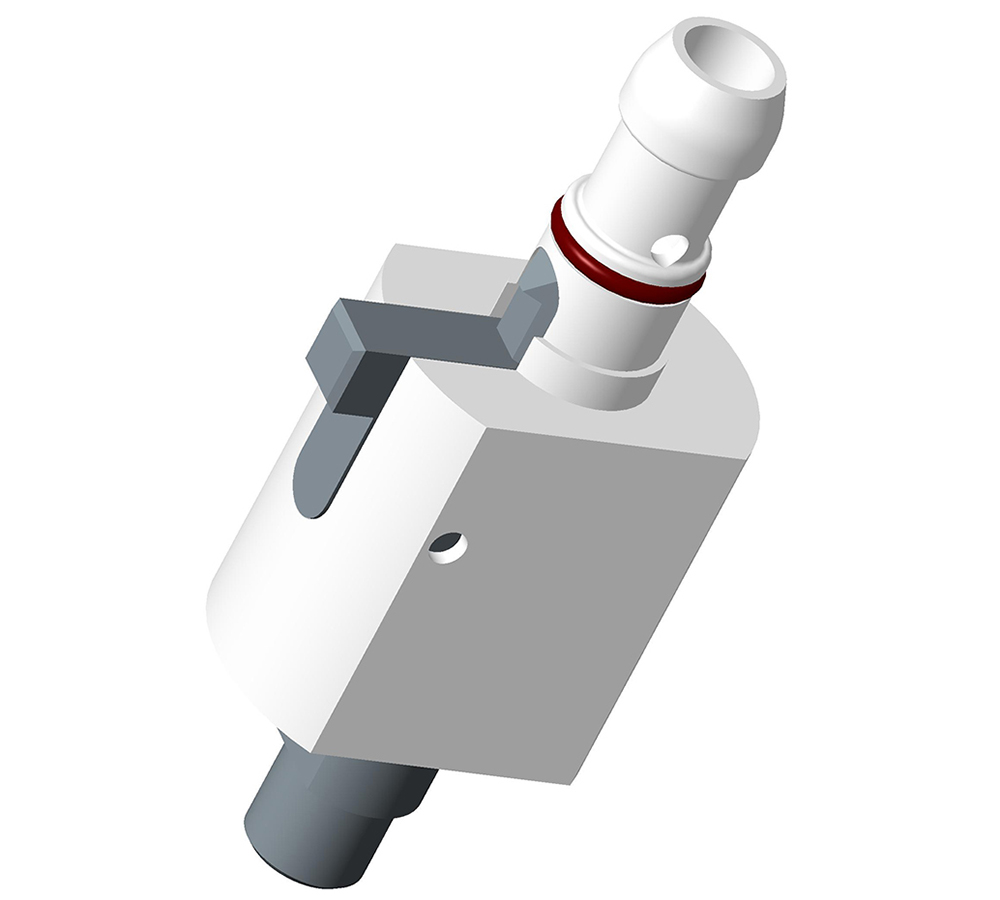

| 010576599 | ISO adapter for straight and contra-angle handpieces (set of 2) |
|
|

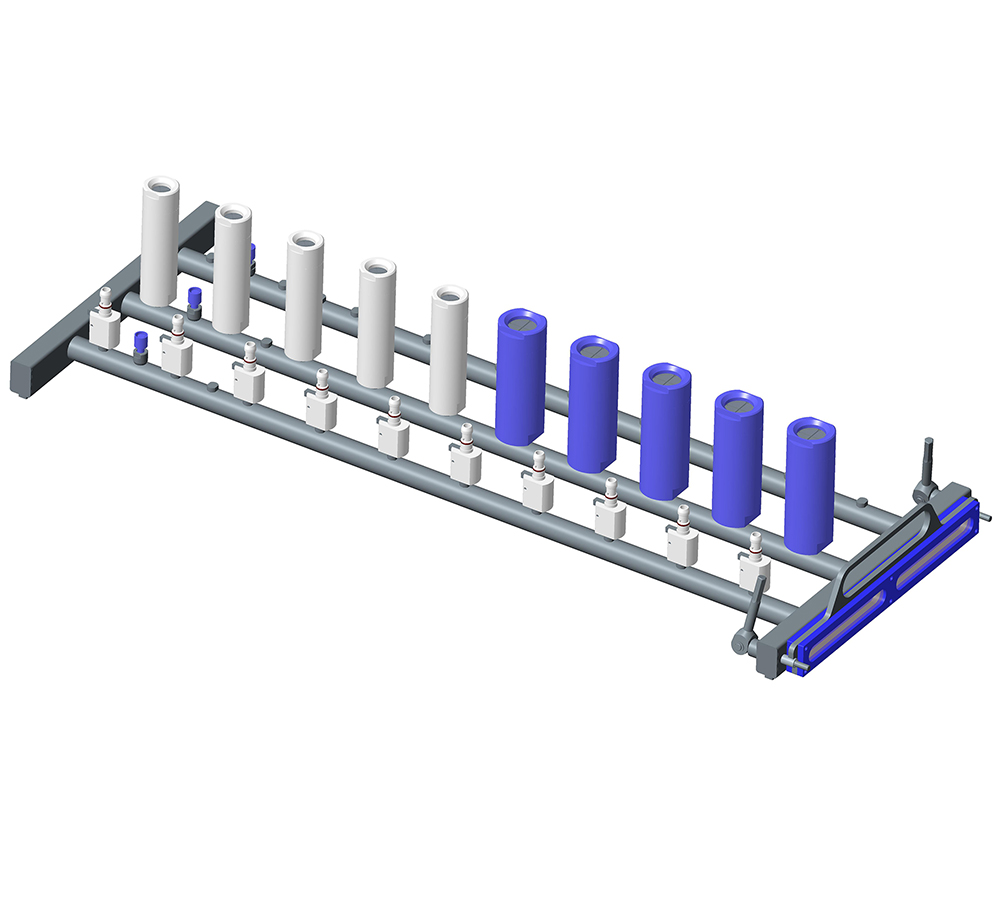

| 010539672 | ISO dental module |
|
|
| 010633687 | Module Dental ISO Basic |
|
|

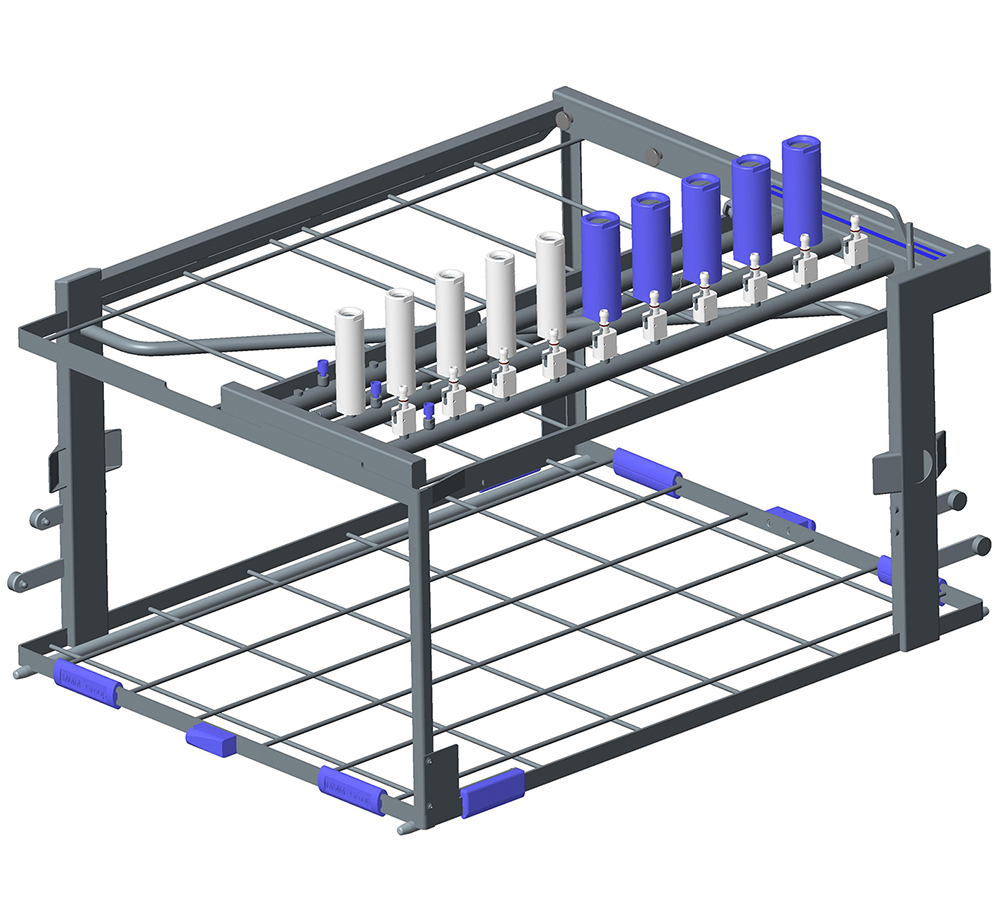

| 010531520 / 010548804* | Dental rack, 2-level (*Spray Arm Monitoring) |
|
|

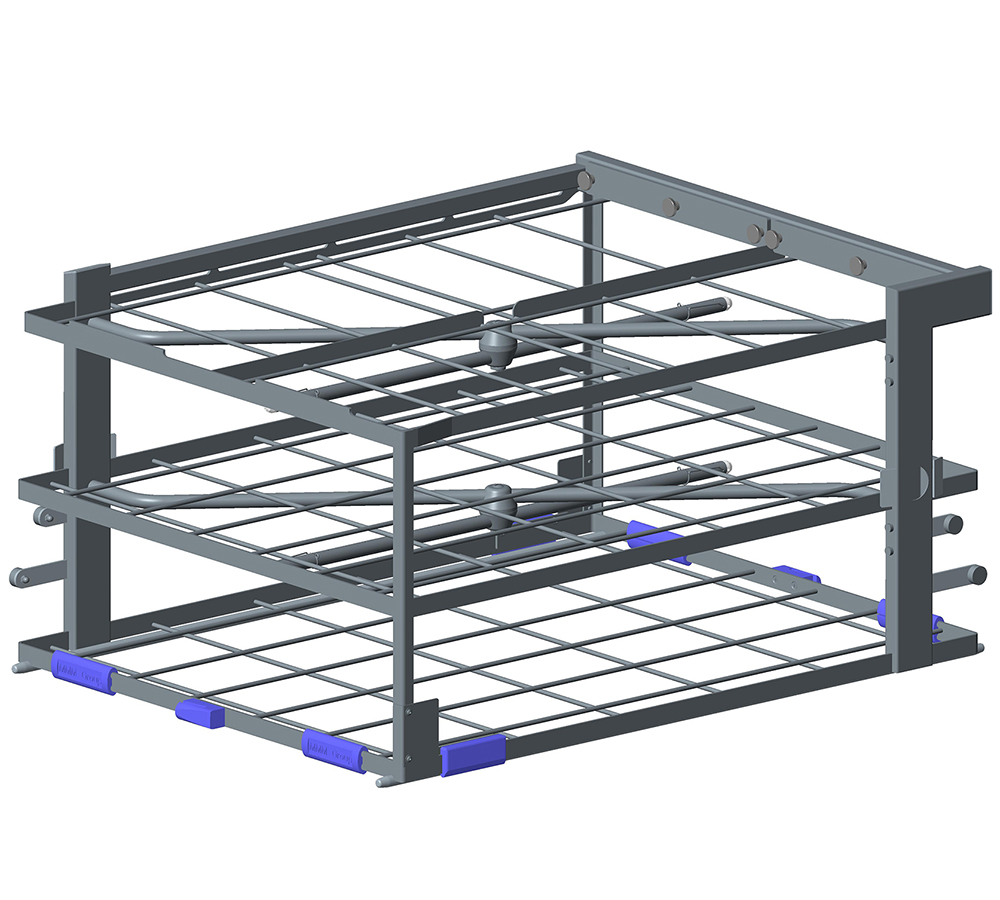

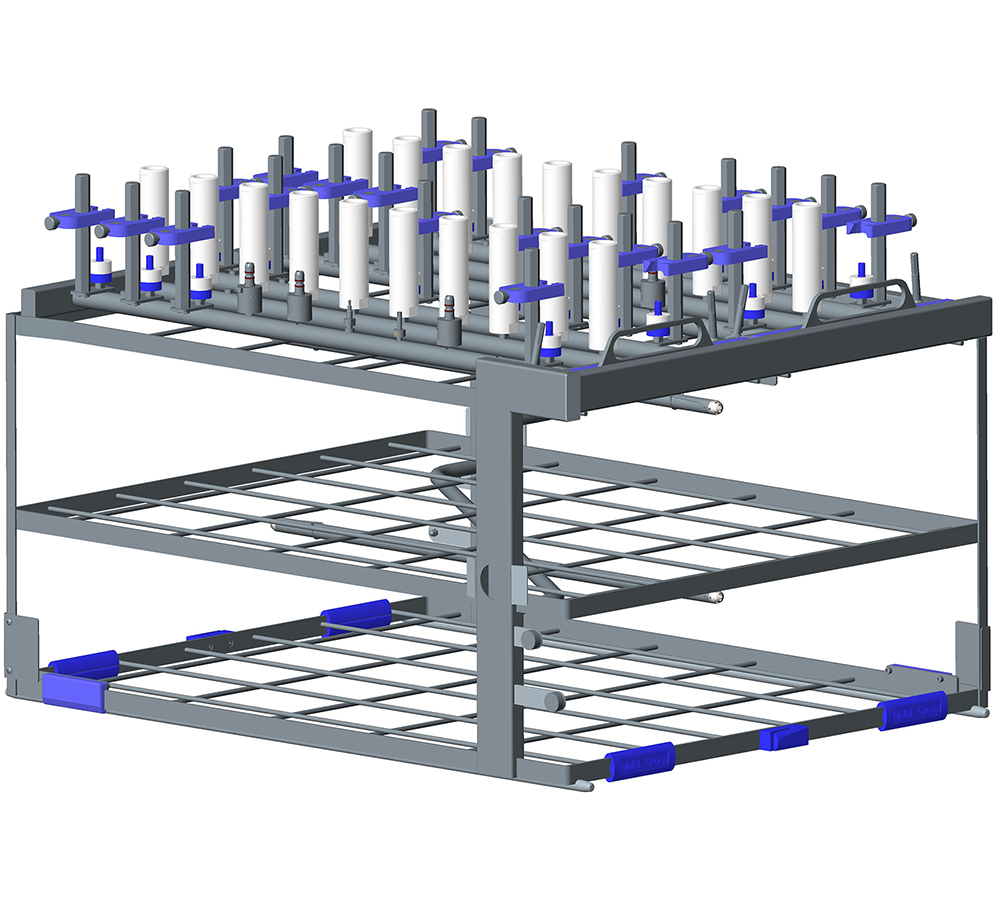

| 010531552 / 010548805* | Dental rack, 3-level (*Spray Arm Monitoring) |
|
|
| 010531777 | Universal holder for transfer instruments |
|
|
| 010533293 | Holder for water/air handpieces |
|
|

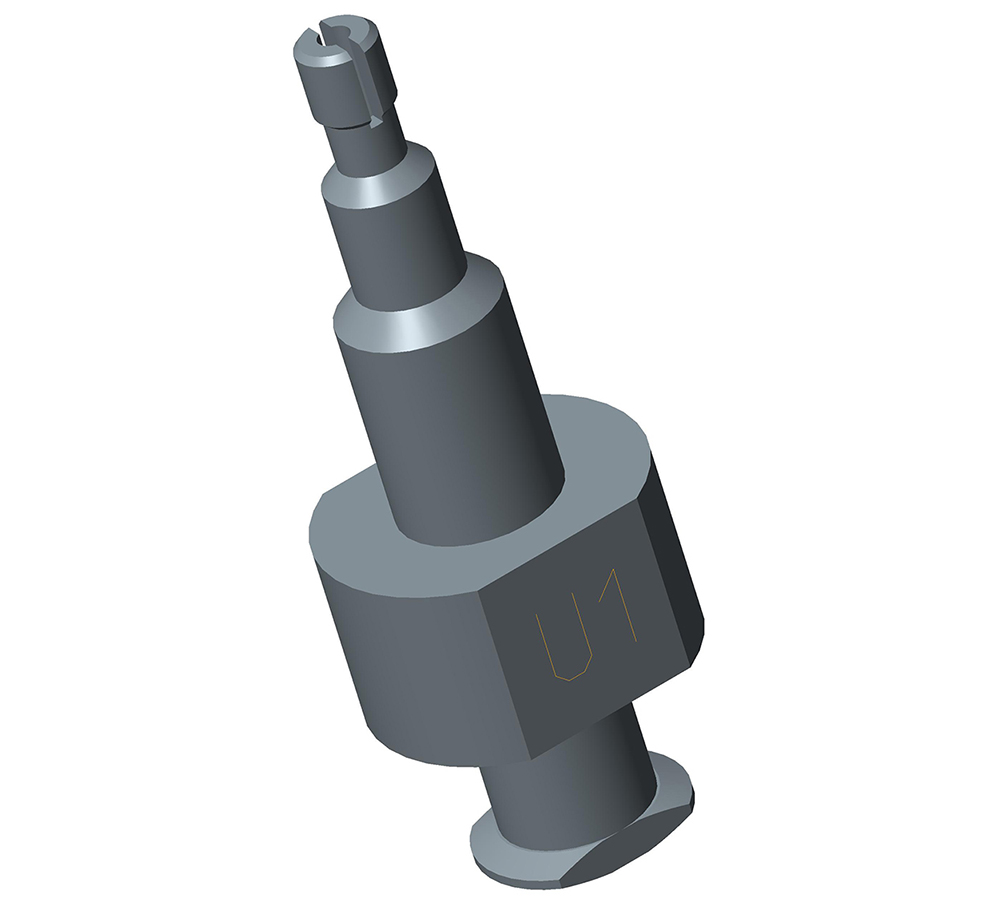

| 010533224 | Female U-1/Luer rinse adapter (set of 2) |
|
|
| 010531815 | Luer Lock, female for øi 1mm tube (set of 5) |
|
|

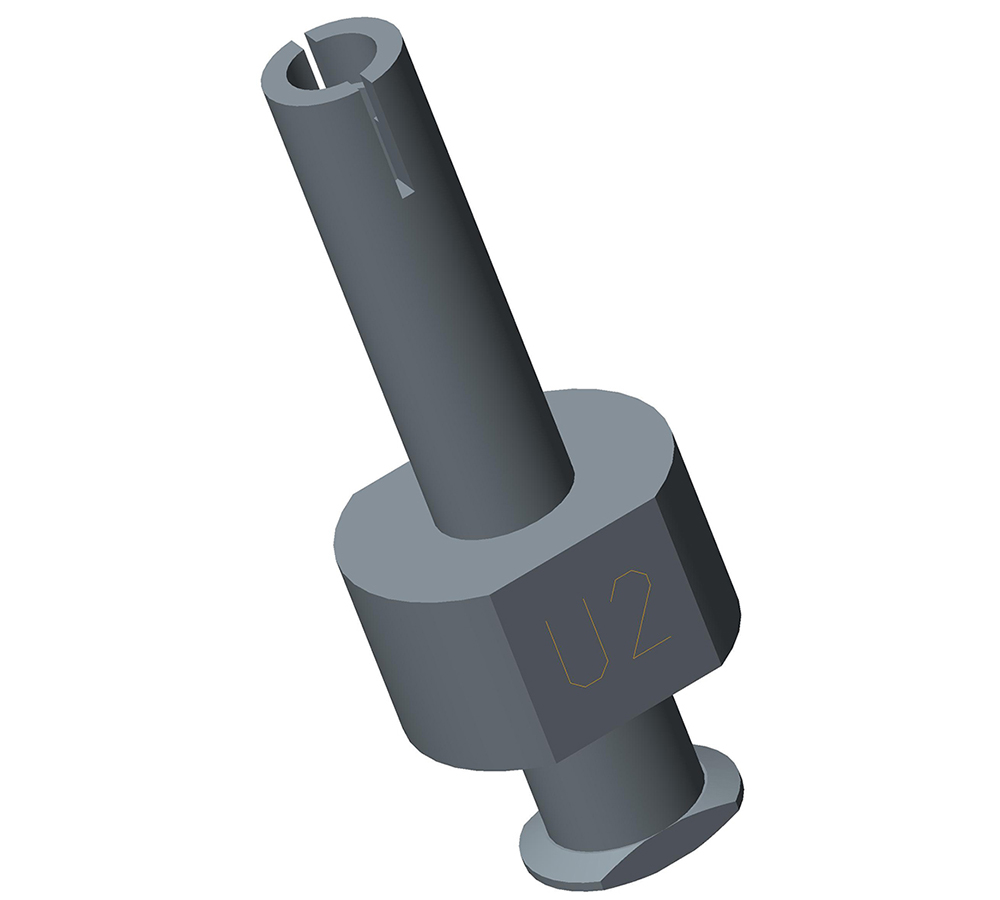

| 010533226 | Female U-2/Luer rinse adapter (set of 2) |
|
|
| 010531816 | Silicone tube 1 x 0.5 x 1000 mm |
|
|

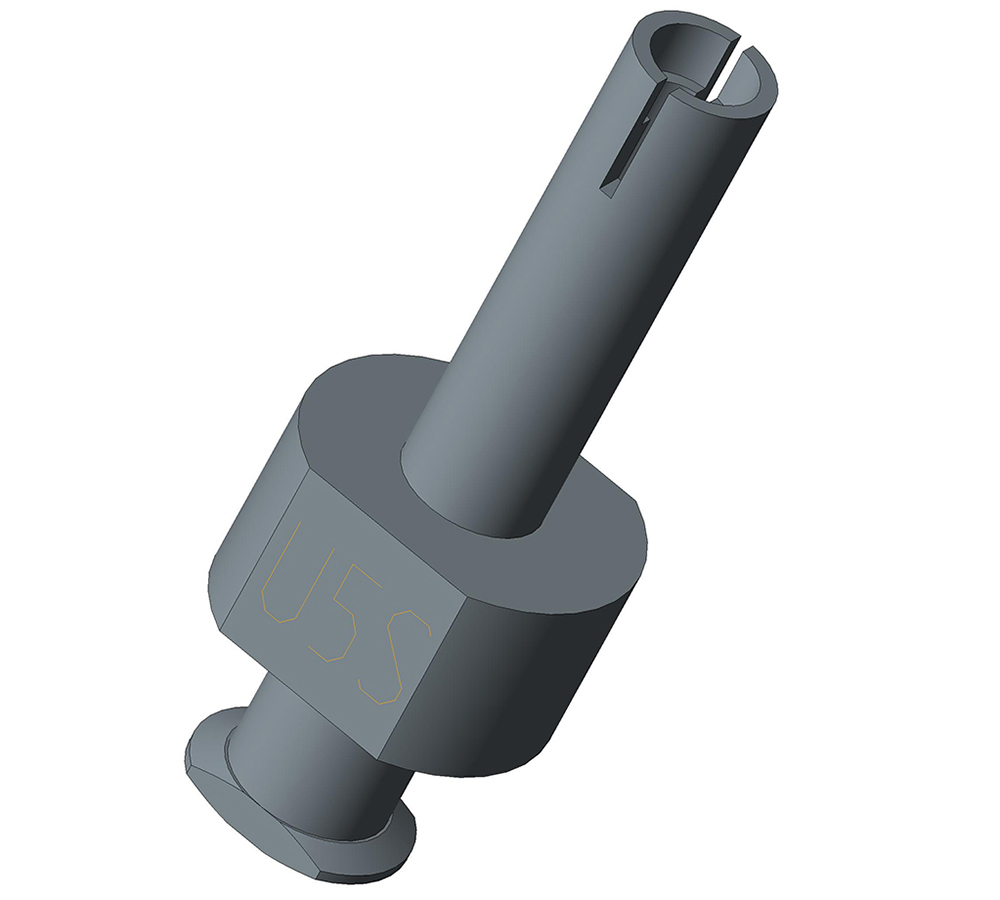

| 010557097 | Female U-5/Luer rinse adapter (set of 2) |
|
|

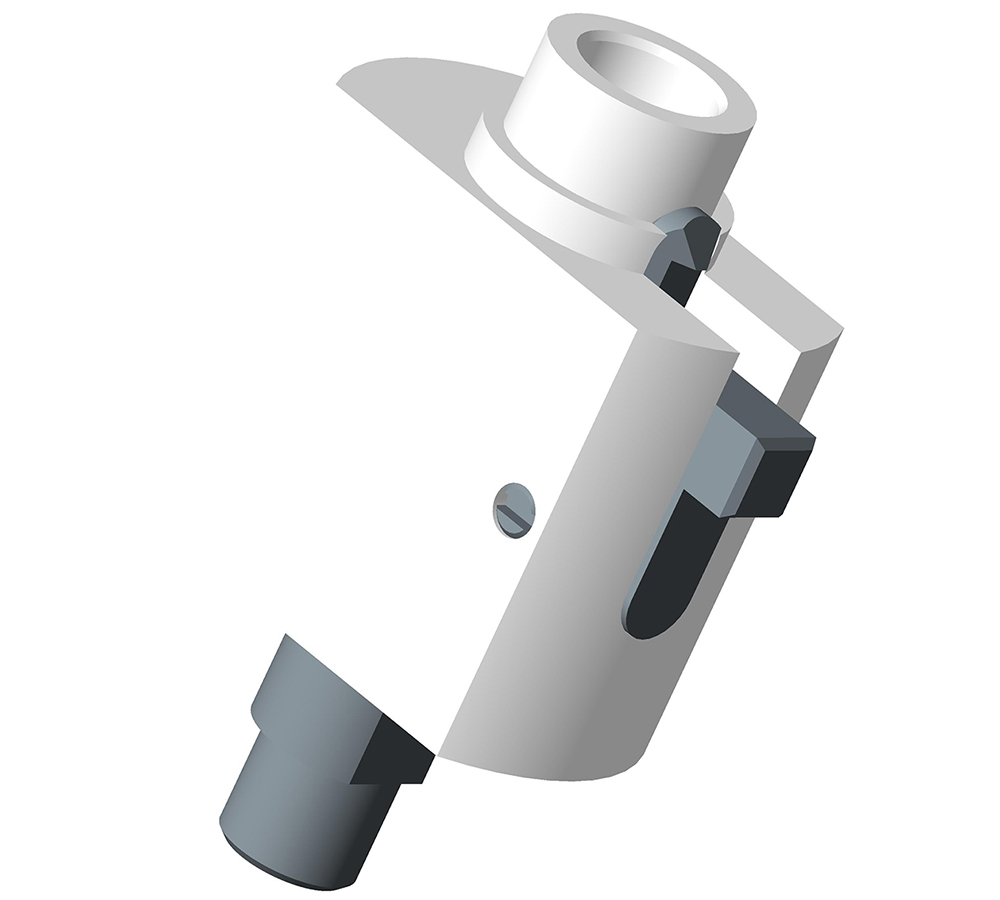

| 010557094 | Adapter for water/air handpiece |
|
|

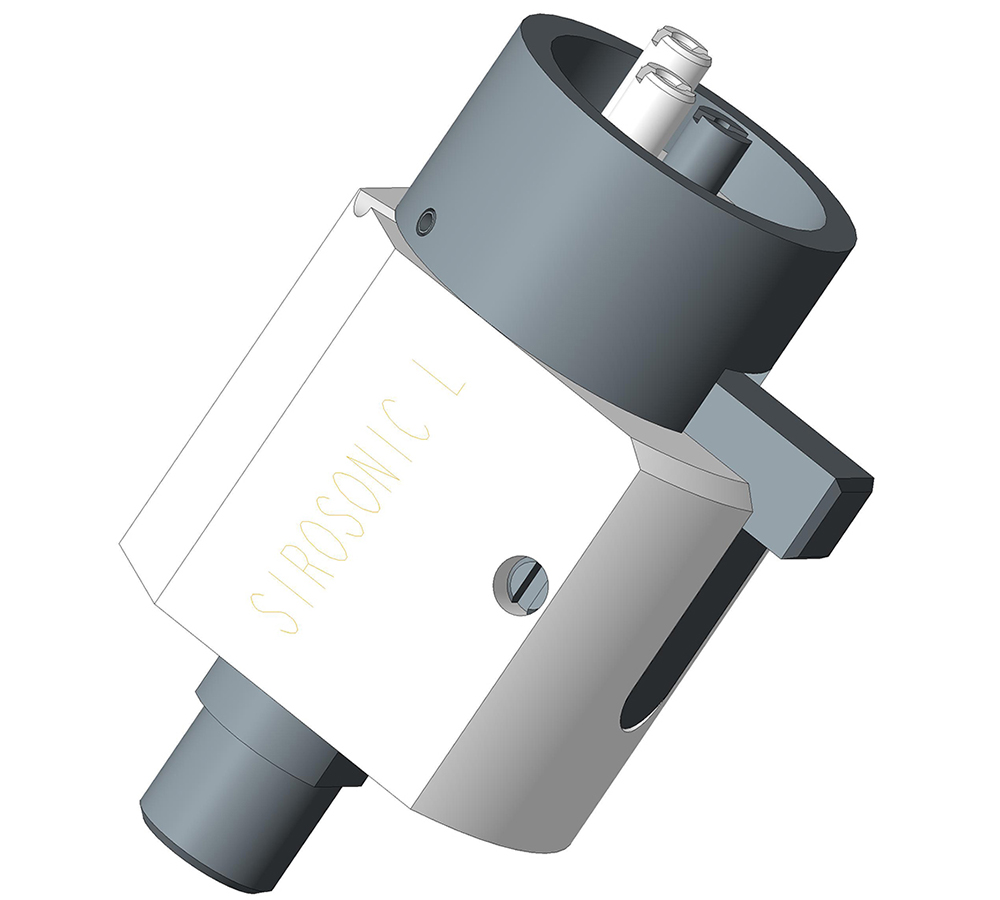

| 010557095 | Adapter for Sirosonic L ultrasound handpiece |
|
|

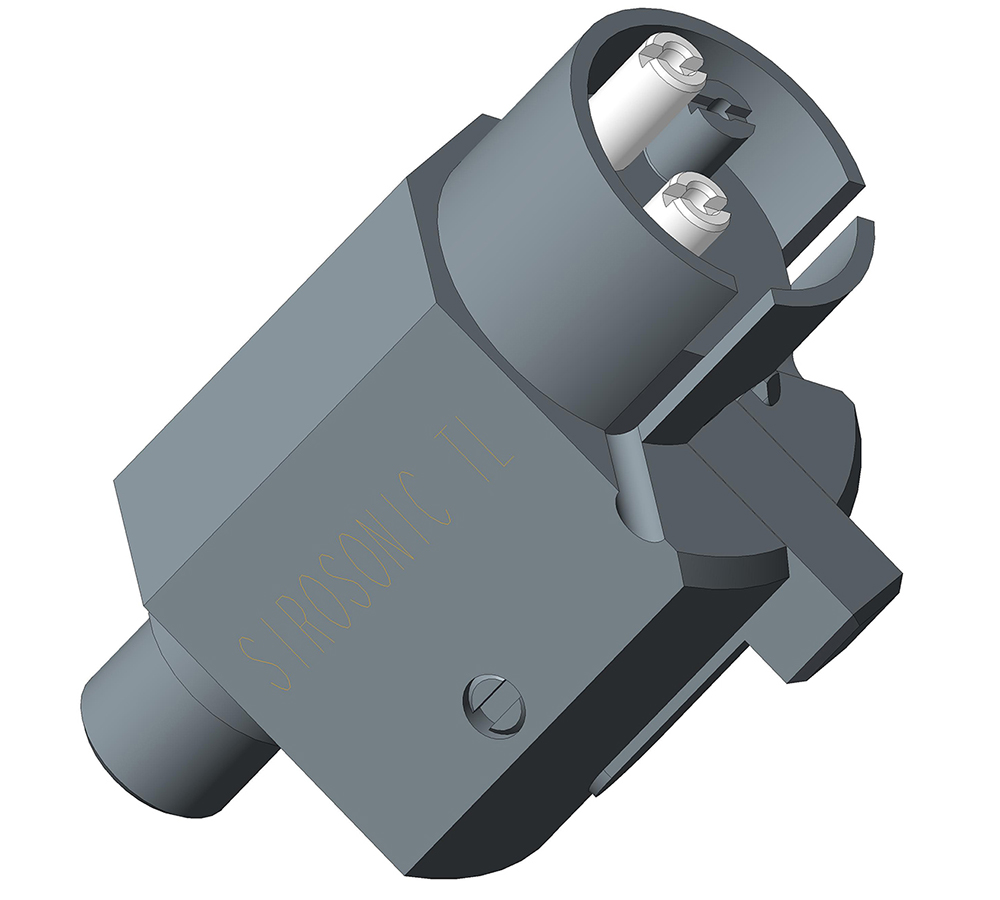

| 010557096 | Adapter for Sirosonic TL ultrasound handpiece |
|
|

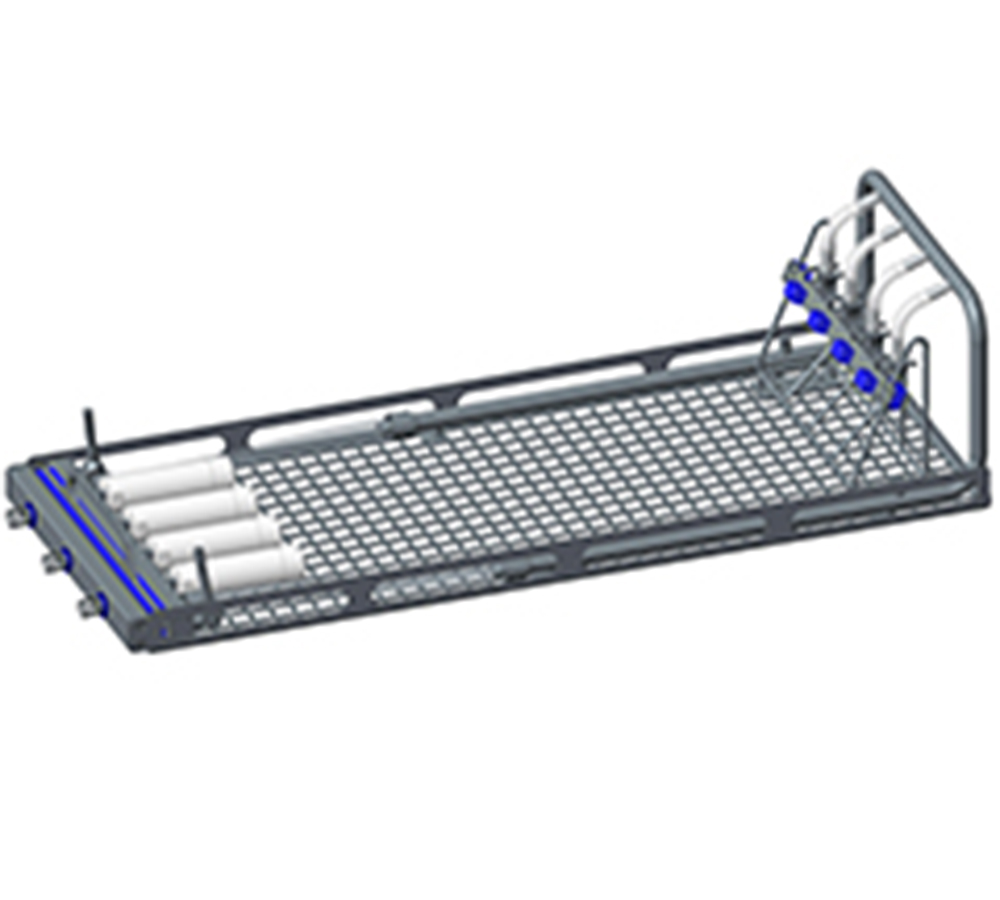

| 010548428 / 010549934* | Rack Robotics 1 suits Da Vinci Xi (*Spray Arm Monitoring) |
|
|
| 010548439 | Da Vinci Xi module suites IS4000 series da Vinci Xi |
|
|
| 010548403 | Adapter for da Vinci Xi (set of 2) |
|
|

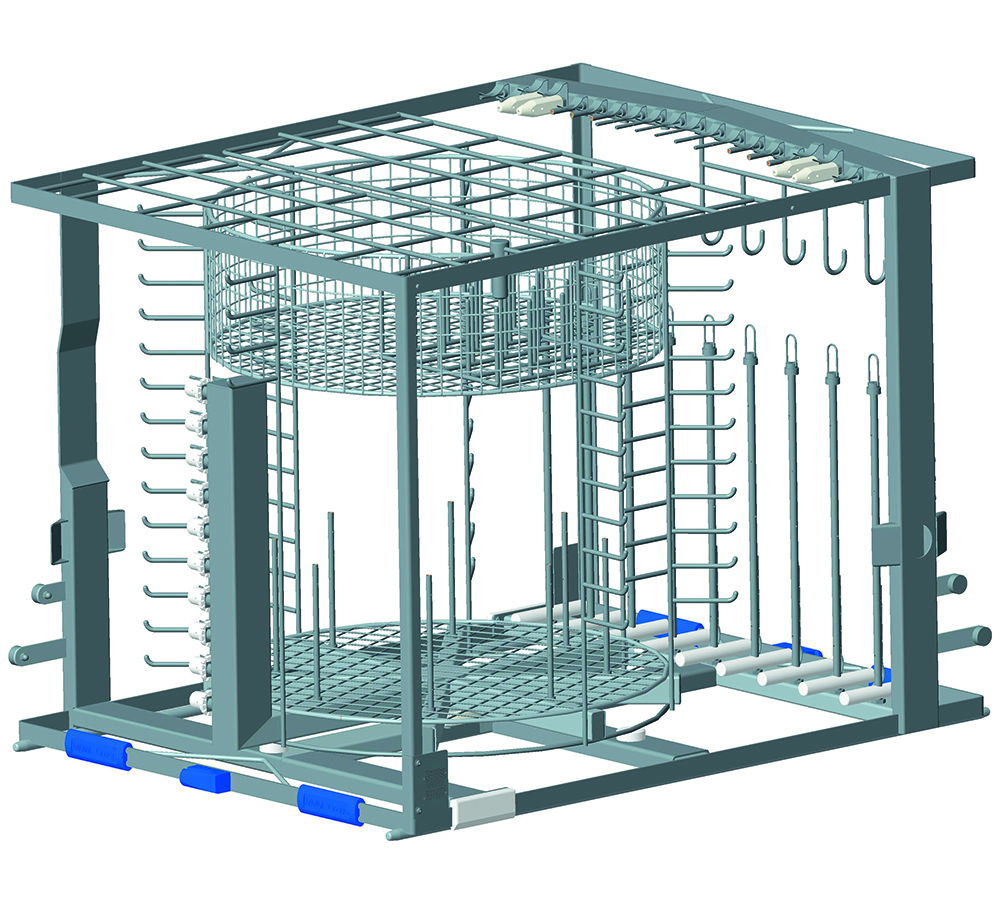

| 010109332 | Anesthetic drum rack |
|
|
| 010531106 / 010548806* | Anesthesia rack, 2-level (*Spray Arm Monitoring) |
|
|
| 010548404 | AN supply strip, 10A |
|
|
| 010124981 | Plug-in rack for retrofitting standard in AN rack 010109332 |
|
|
| 010612828 | Rack Container flex |
|
|

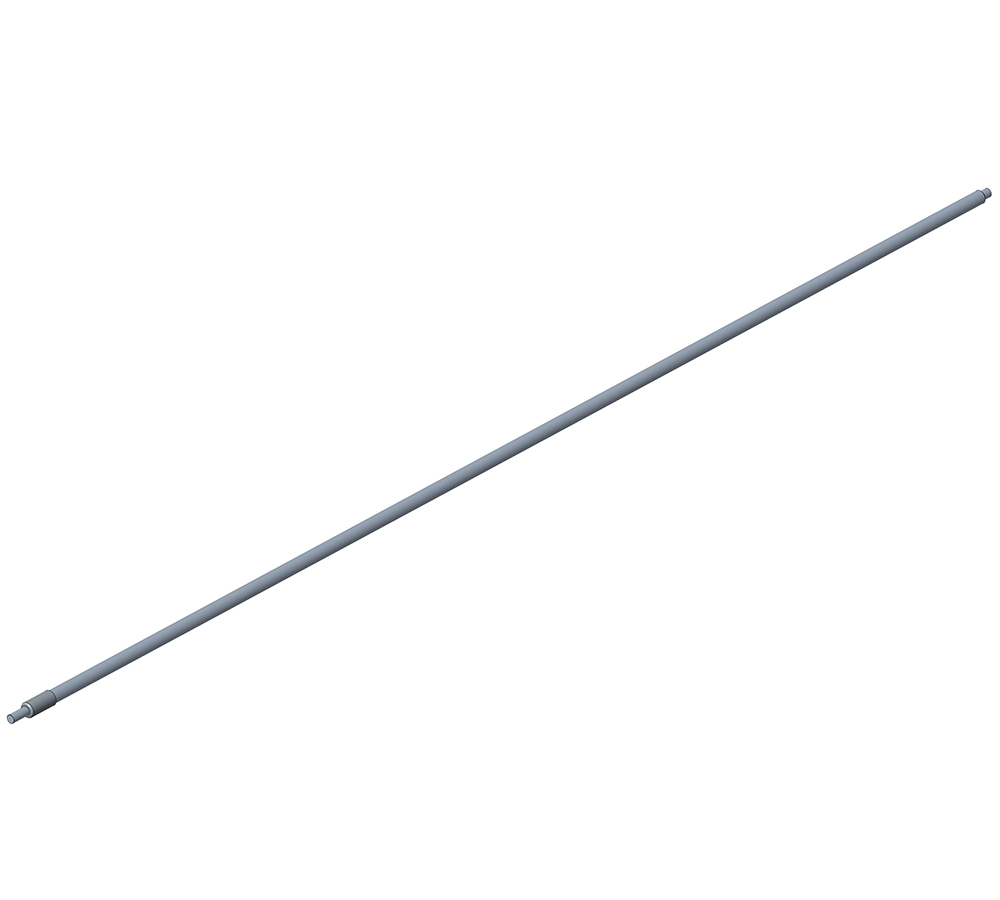

| 010634664 | Support rod for Rack Container flex (set of 3) |
|
|

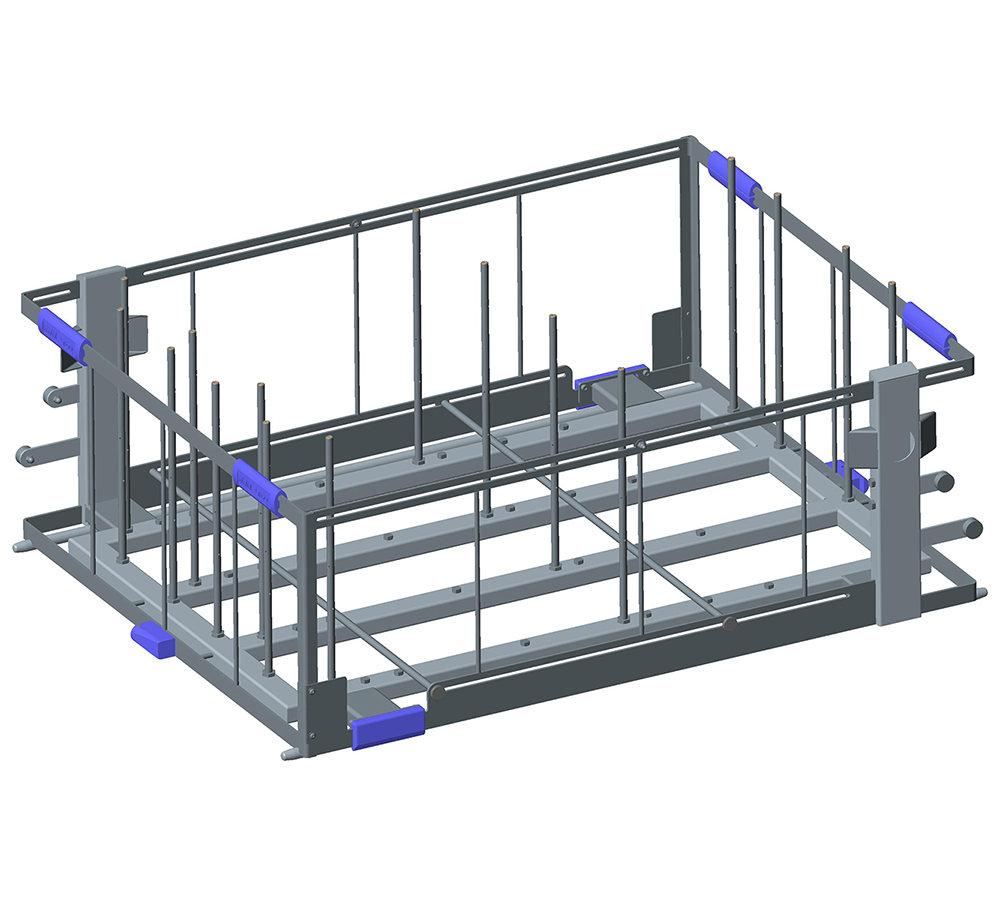

| 010570023 | Rack for plastic containers 1 |
|
|
| 010570024 | Rack for plastic containers 2 |
|
|
| 010570025 | Rack for plastic containers 3 |
|
|

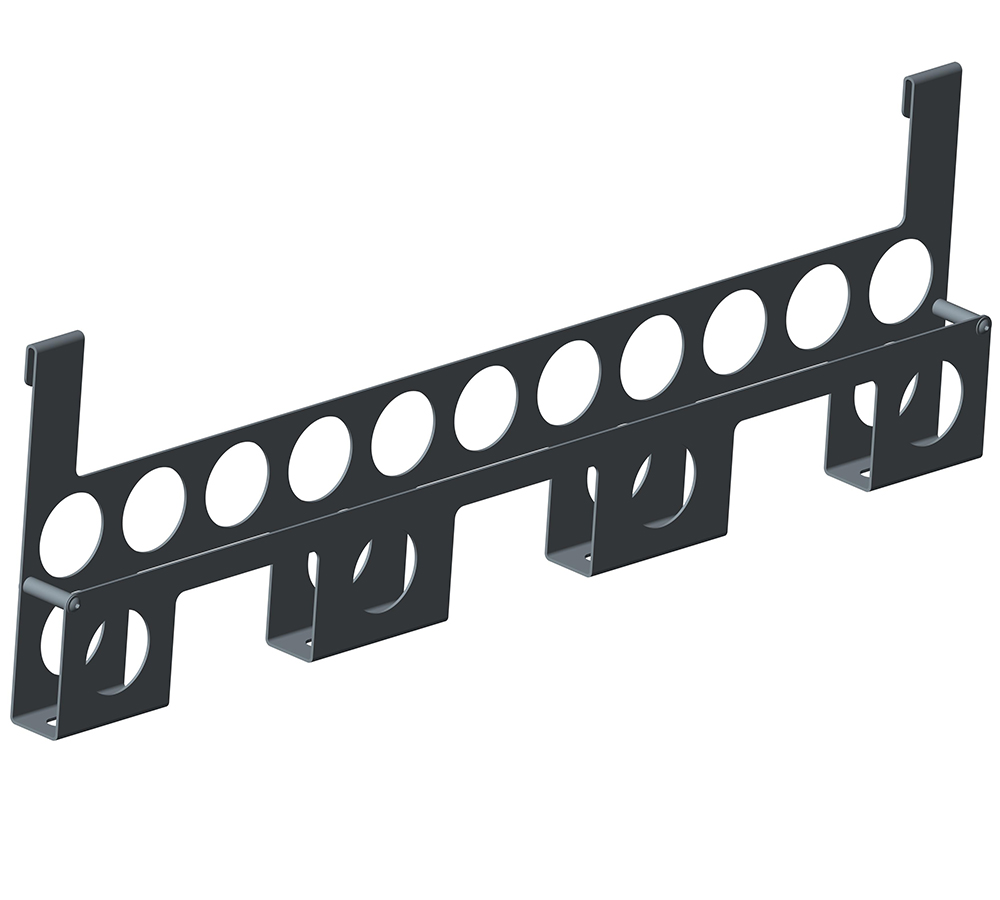

| 010596210 | Filter holder insert |
|
|
| 010548181 | Rack Endo Trays |
|
|
| 010109348 | Insert module for OR shoes up to size 42 |
|
|
| 010109346 | Insert module for OR lamp handles |
|
|
| 010109347 | Insert module for OR shoes up to size 48 |
|
|

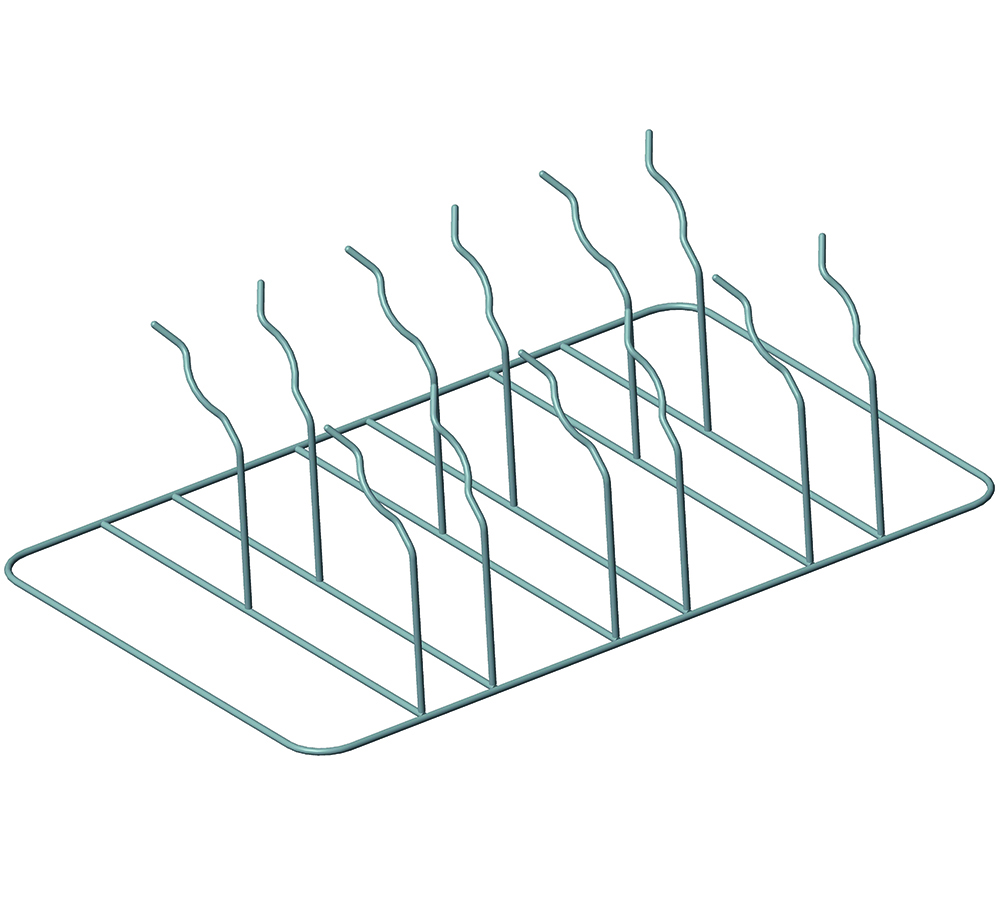

| 010486454 | Insert module for 1 L measuring jugs |
|
|
| 010109345 | Insert module for 200 ml bowls |
|
|

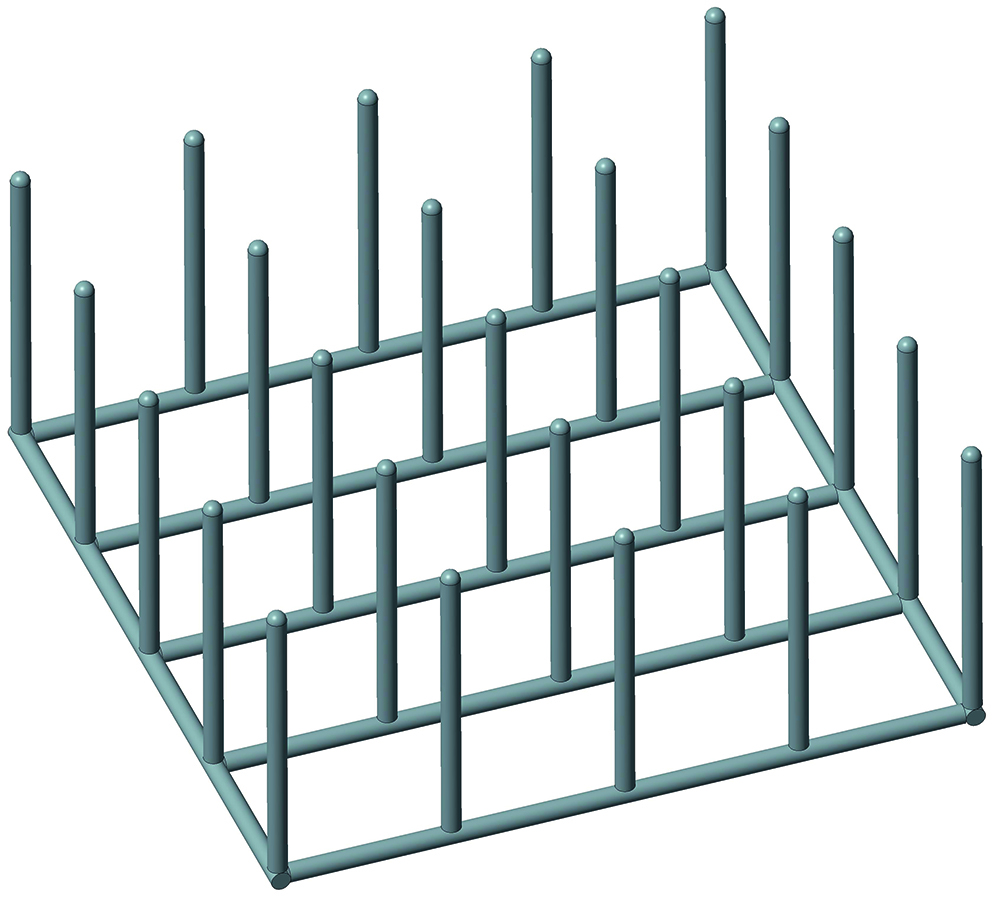

| 010109344 | Insert module for 125 ml bowls |
|
|
| 010109343 | Insert module for kidney basins / OR shoe soles |
|
|

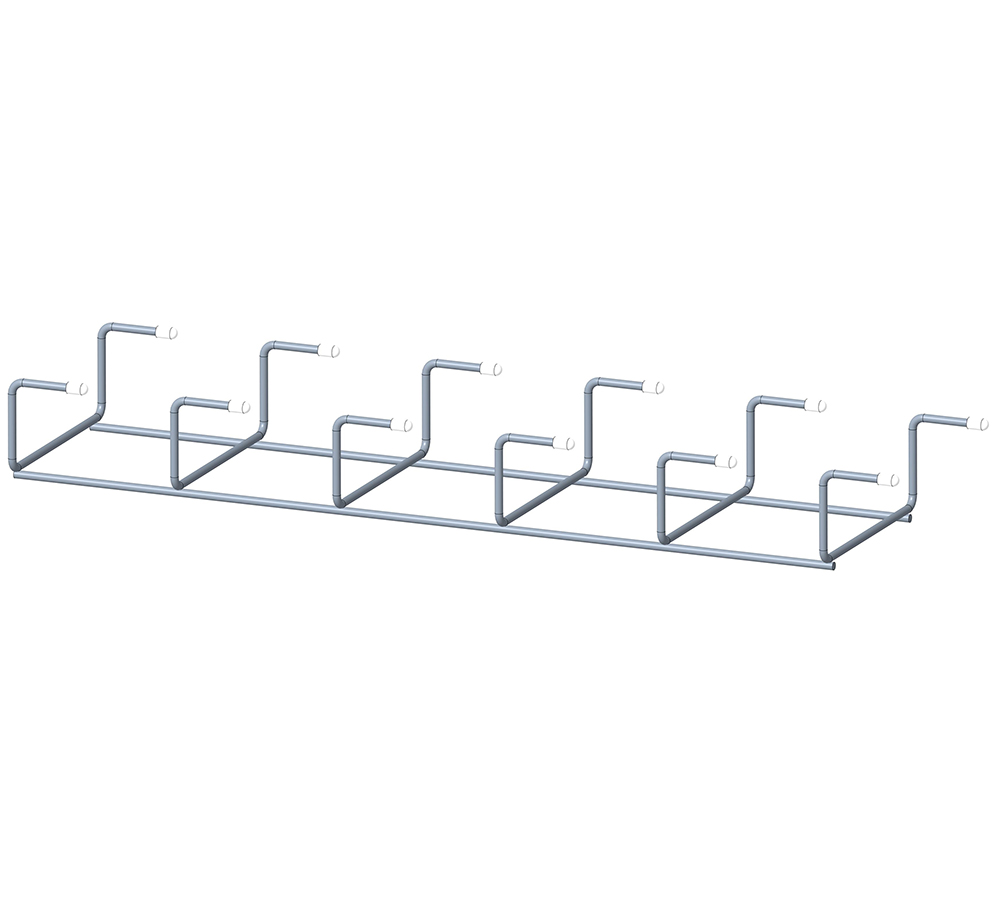

| 010629326 | Insert module for safety goggles |
|
|

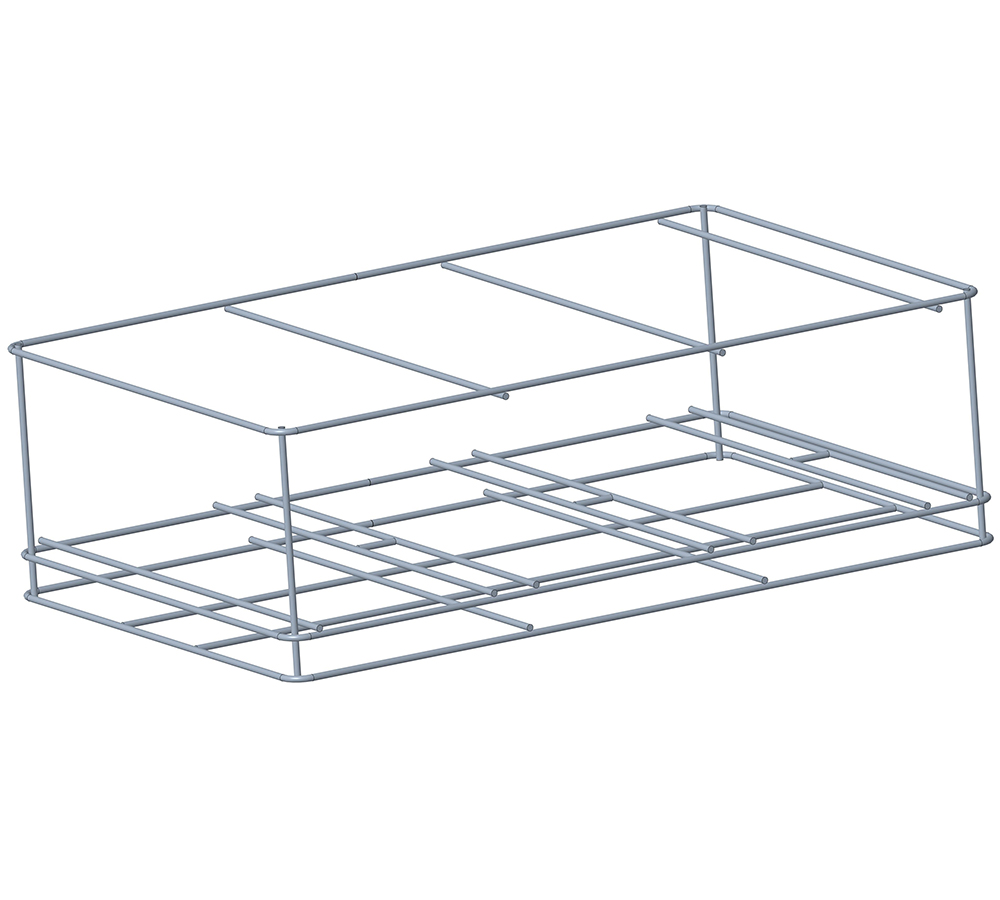

| 010630847 | Insert module for 300 ml bowls |
|
|
| 010531815 | Luer Lock, female for øi 1mm tube (set of 5) |
|
|

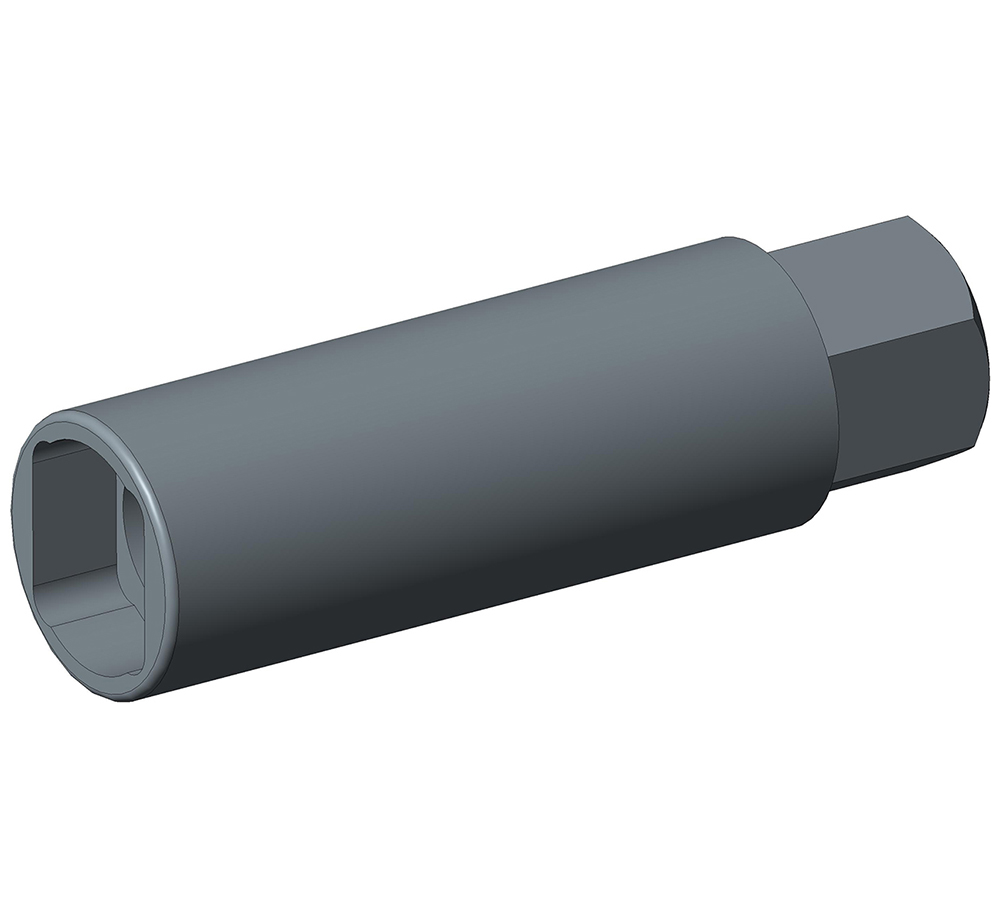

| 010560977 | Installation tool for self-sealing LL |
|
|

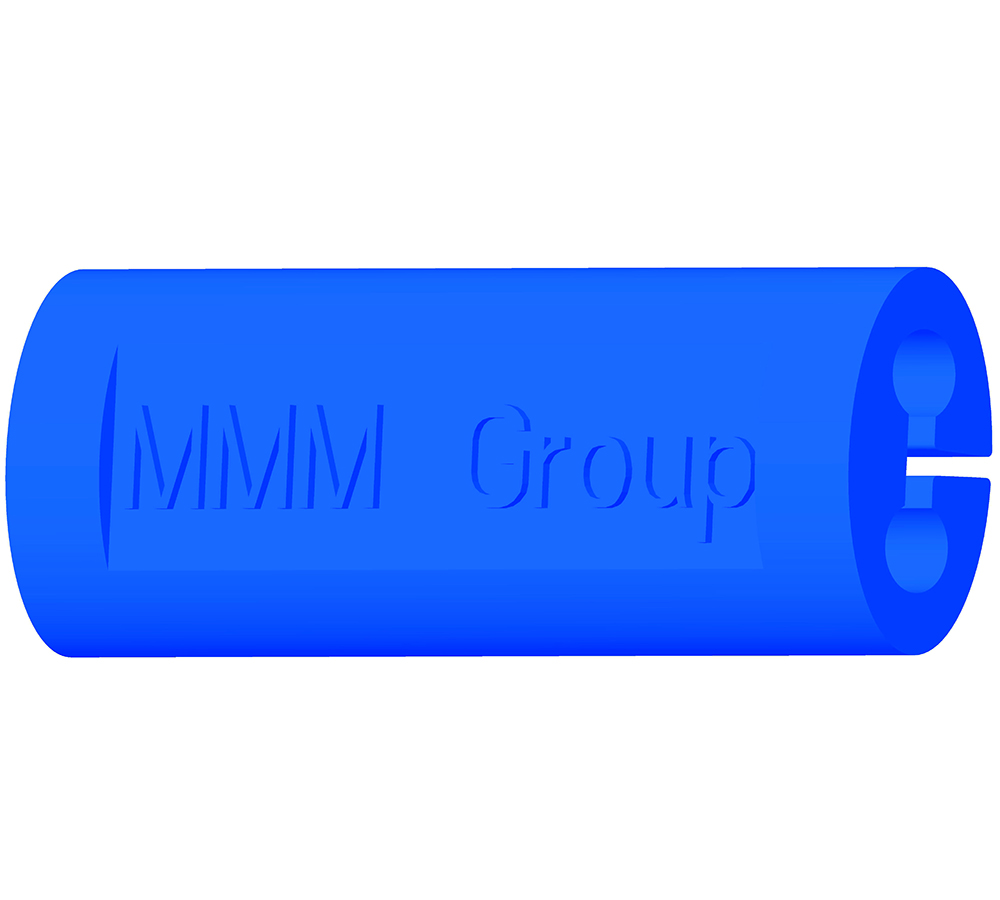

| 010115305 | CoolTouch handle |
|
|
| 010511382 | Luer Lock, female, for øi 3mm tube (set of 5) |
|
|

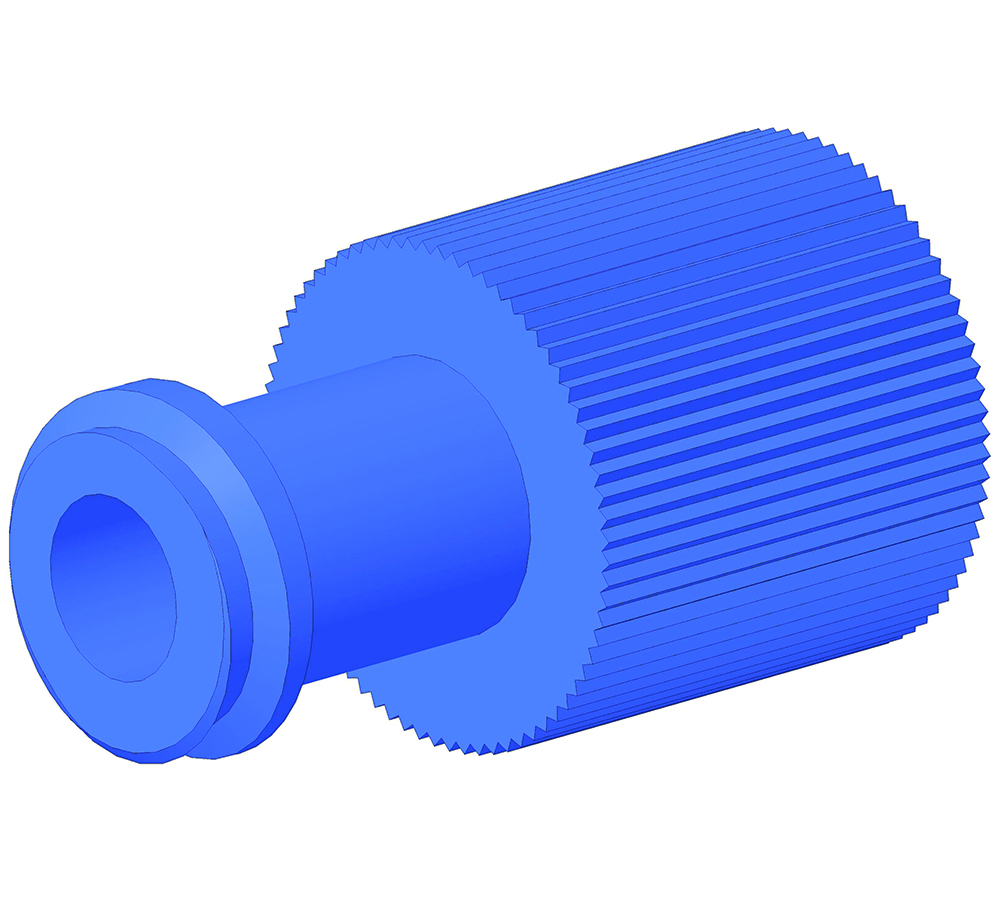

| 010505010 | Sealing cap for male Luer Lock (set of 10) |
|
|

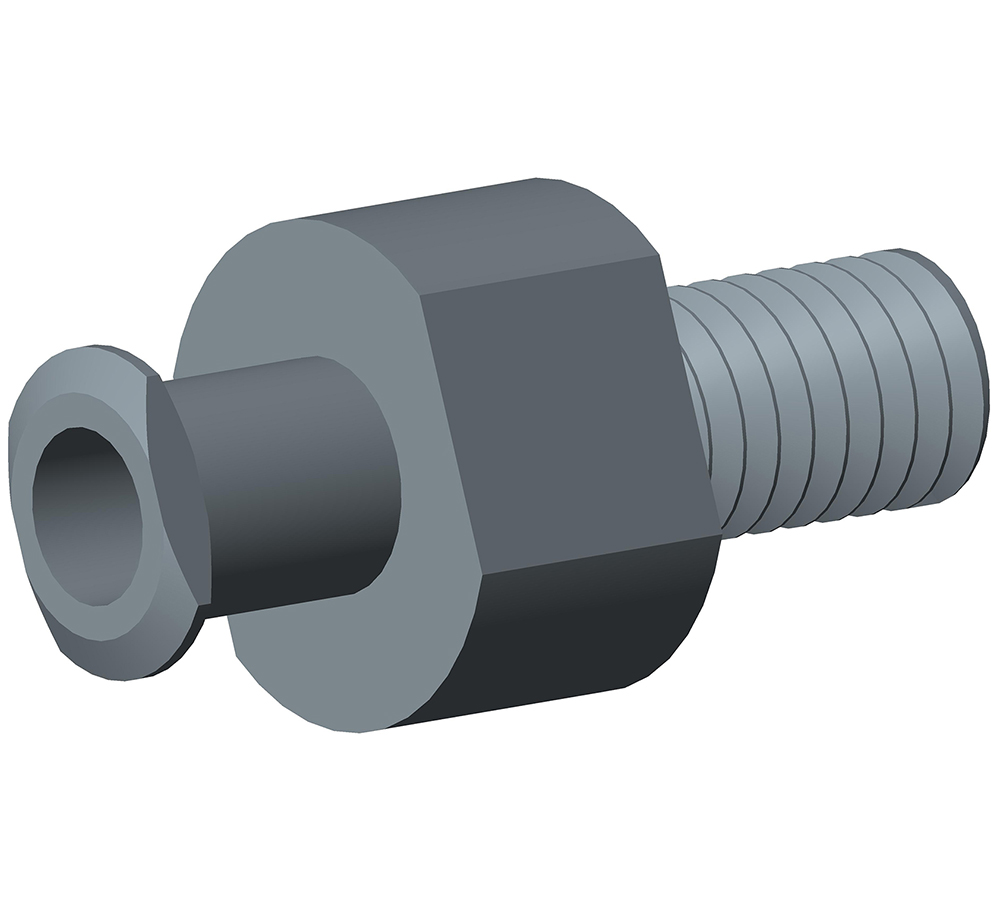

| 010541444 | Luer Lock, female, M6 (set of 5) |
|
|
| 010560975 | Luer Lock, female, M8x1, self-sealing |
|
|
| 010560974 | Luer Lock, male, M8x1, self-sealing |
|
|
| 010109363 | Luer Lock, female, M8x1 (set of 5) |
|
|
| 010118620 | Luer Lock, male, M8x1 (set of 5) |
|
|
| 010518981 | Stopper for øi 8 mm nozzle (set of 2) |
|
|
| 010541450 | Adapter, M12/M8x1 (set of 4) |
|
|
| 010614836 | Rinsing holder, short 6 (set of 2) |
|
|

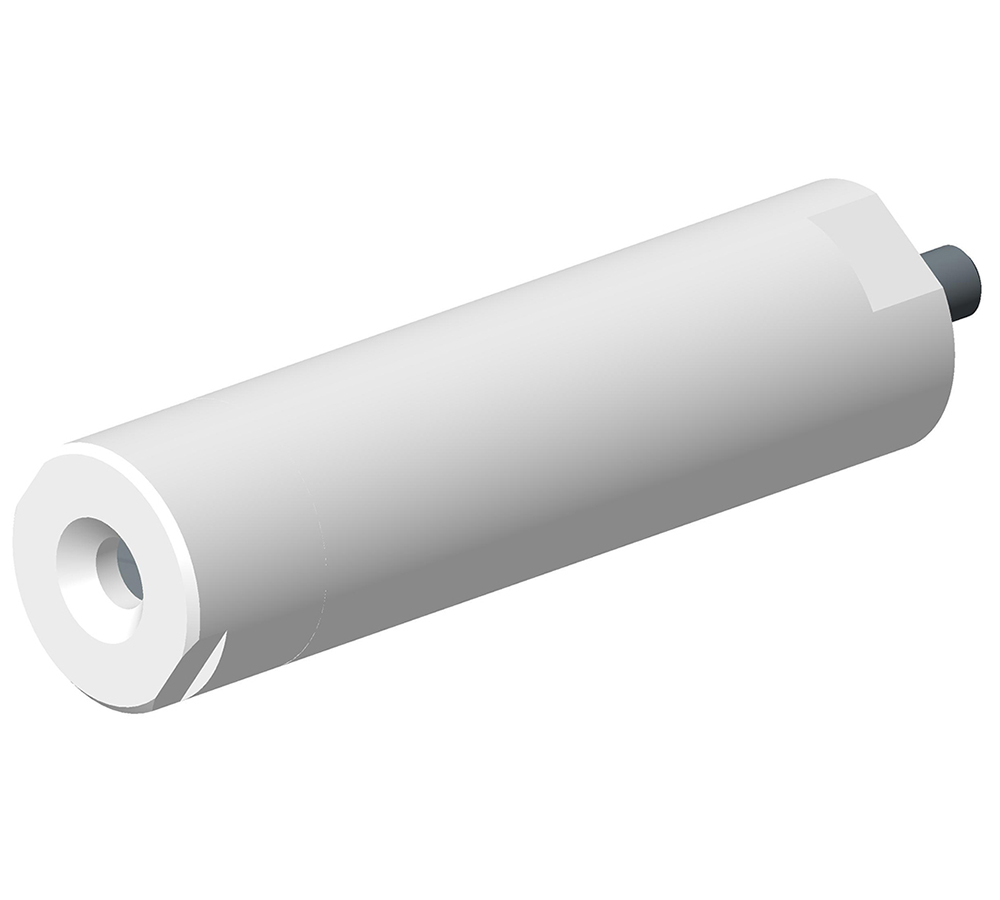

| 010563648 | Rinsing holder, short 8 (set of 2) |
|
|
| 010543374 | Rinsing holder, ø8 (set of 2) |
|
|
| 010114068 | Rinsing holder 12 (set of 2) |
|
|
| 010533498 | Rinsing holder 16 (set of 2) |
|
|
| 010558835 | Rinsing holder, short 16 (set of 2) |
|
|
| 010114069 | Rinsing holder 20 (set of 2) |
|
|
| 010541853 | Rinsing holder 24 (set of 2) |
|
|
| 010504991 | Rinsing holder, øi 26, Holder tube (L 100 mm), øi 26 mm, M8x1 screw socket |
|
|

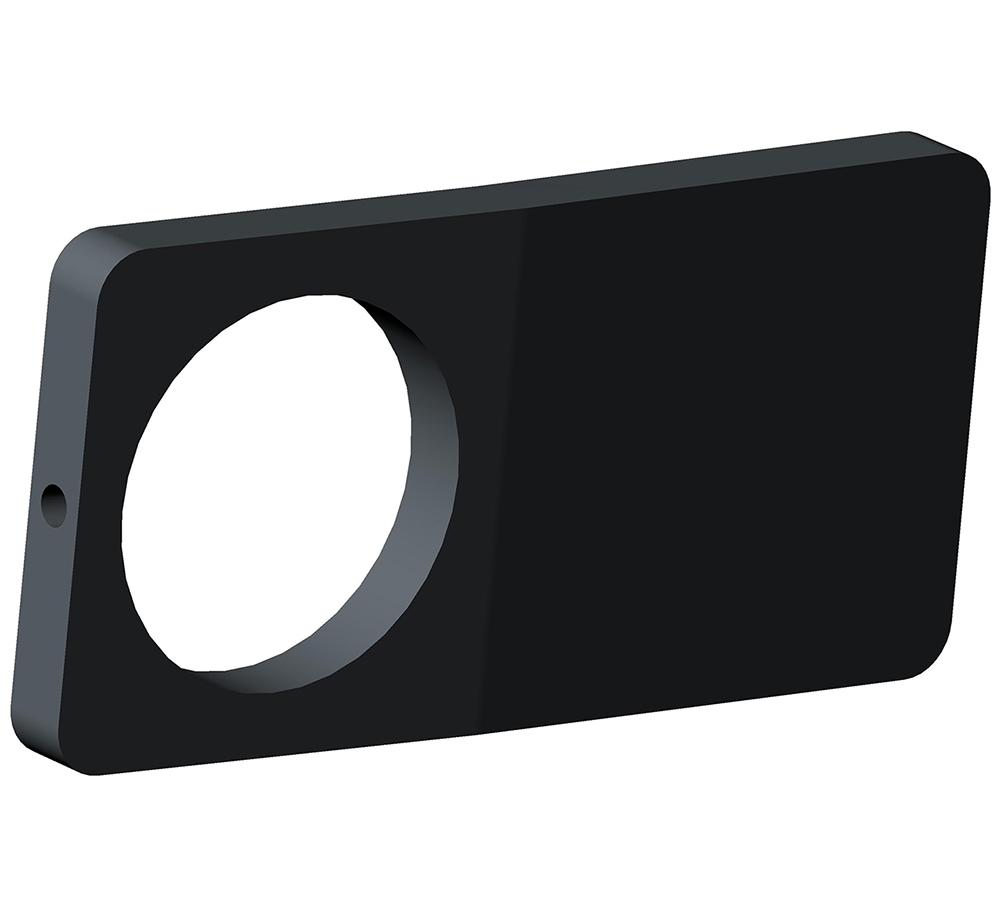

| 010543093 | Rack rotating arm reflector for UPL II 15 (set of 2) |
|
|

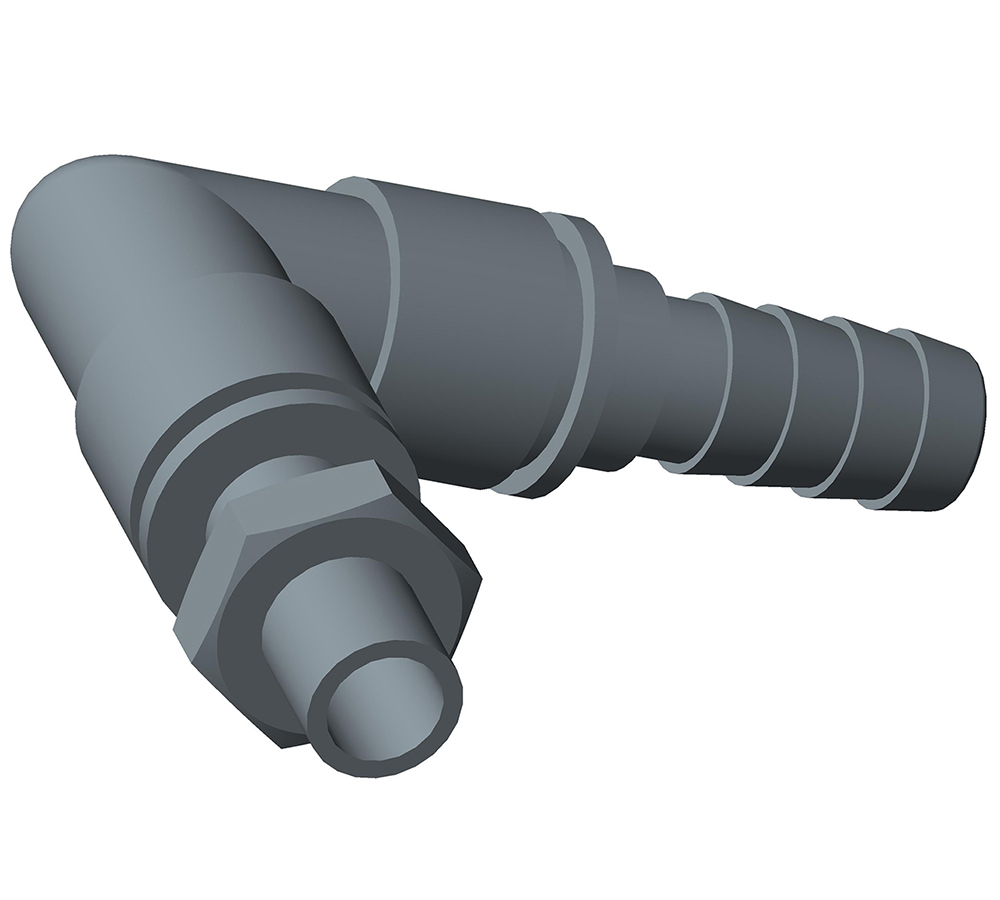

| 010541447 | Connector set, angled (set of 2) |
|
|
| 010510772 | Connector set, straight (set of 2) |
|
|
| 010505009 | Tube connector, conical (set of 5) |
|
|

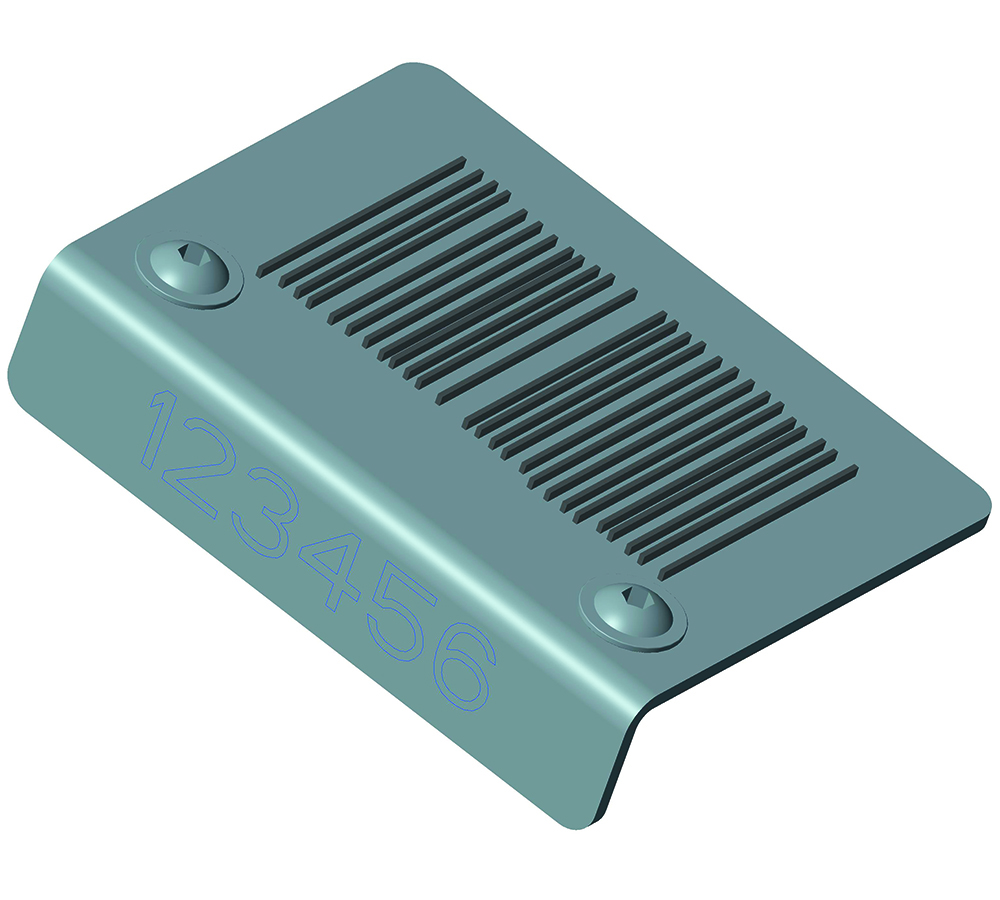

| 010109359 | Plate with barcode label (set of 2) consecutively numbered |
|
|
| 010122240 | Holder cover, øi 23 x L 51 mm (set of 4) |
|
|
| 010577468 | Luer Lock, male øo 10, for øi 5 mm tube (set of 5) |
|
|
| 010109362 | Luer Lock, male, for øi 6 mm tube (set of 5) |
|
|

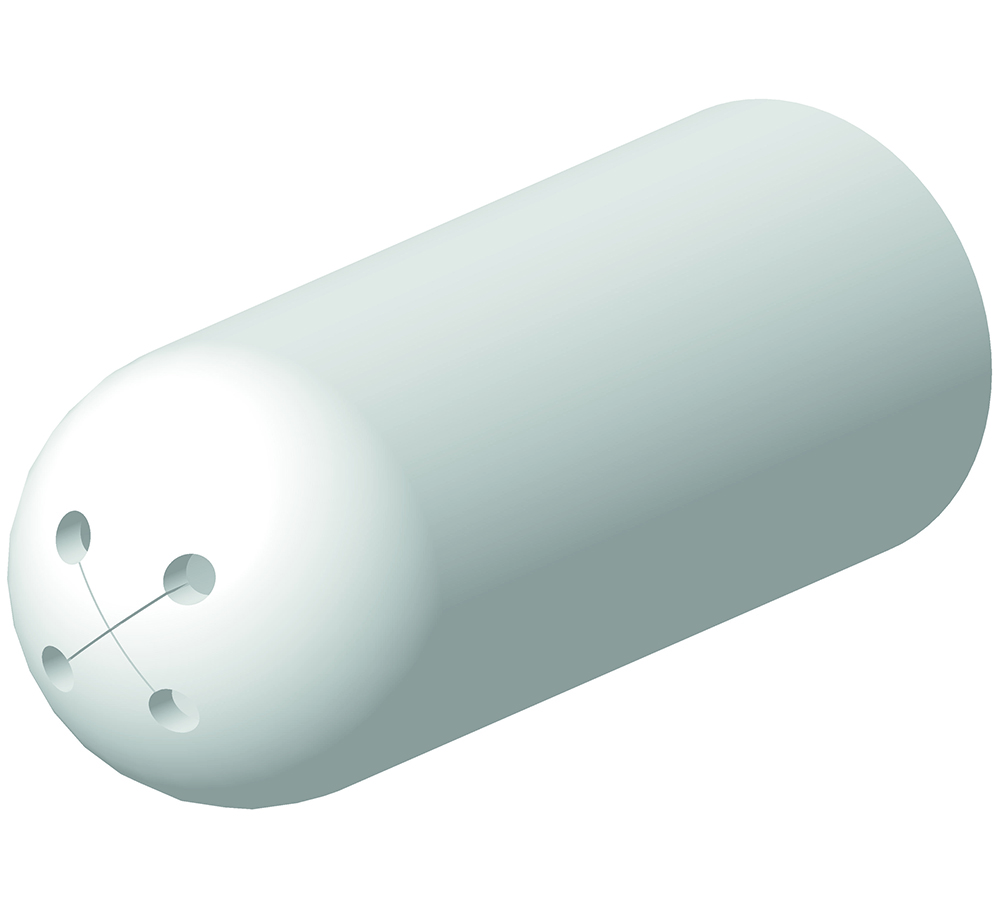

| 010122241 | Holder cover, øi 16 x L 48 mm (set of 4) |
|
|

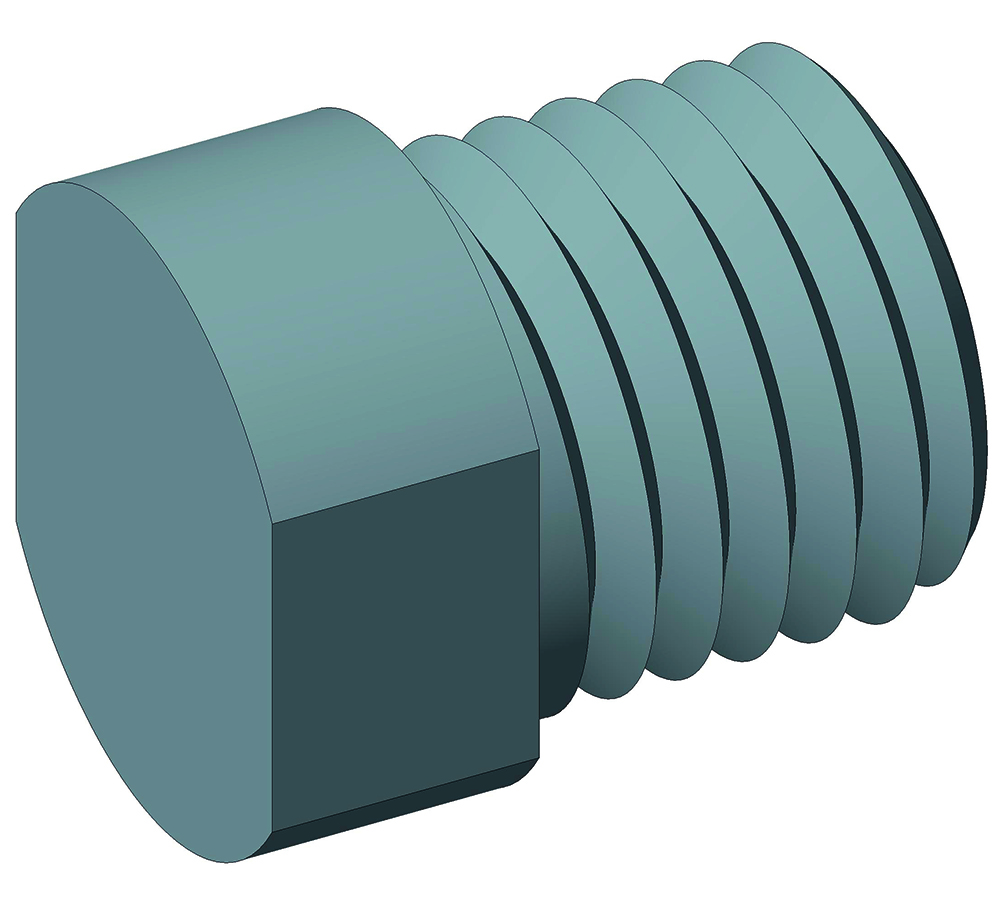

| 010125417 | Blind screw cap, M8x1 (set of 5) |
|
|
| 010109360 | Luer Lock, male, for øi 5 mm tube (set of 5) |
|
|
| 010541432 | Luer Lock, male, for øi 3 mm tube (set of 5) |
|
|

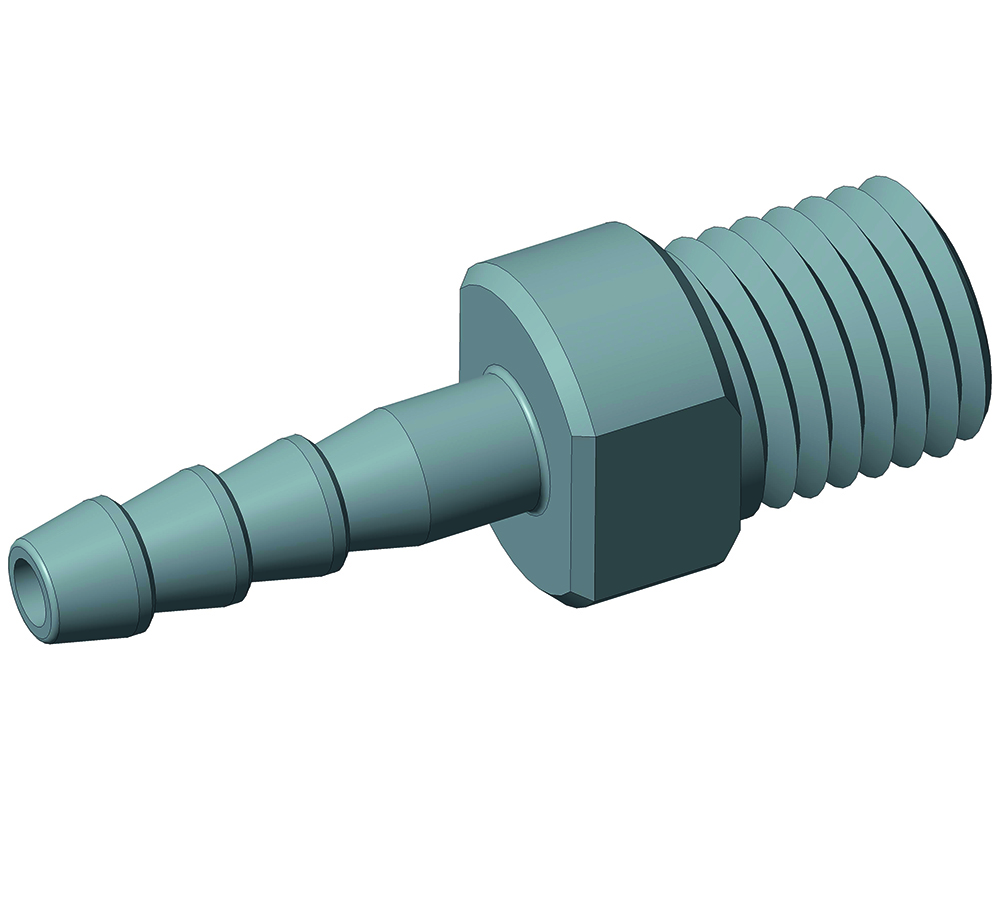

| 010503276 | Tube connector with M8x1 thread (set of 5) |
|
|

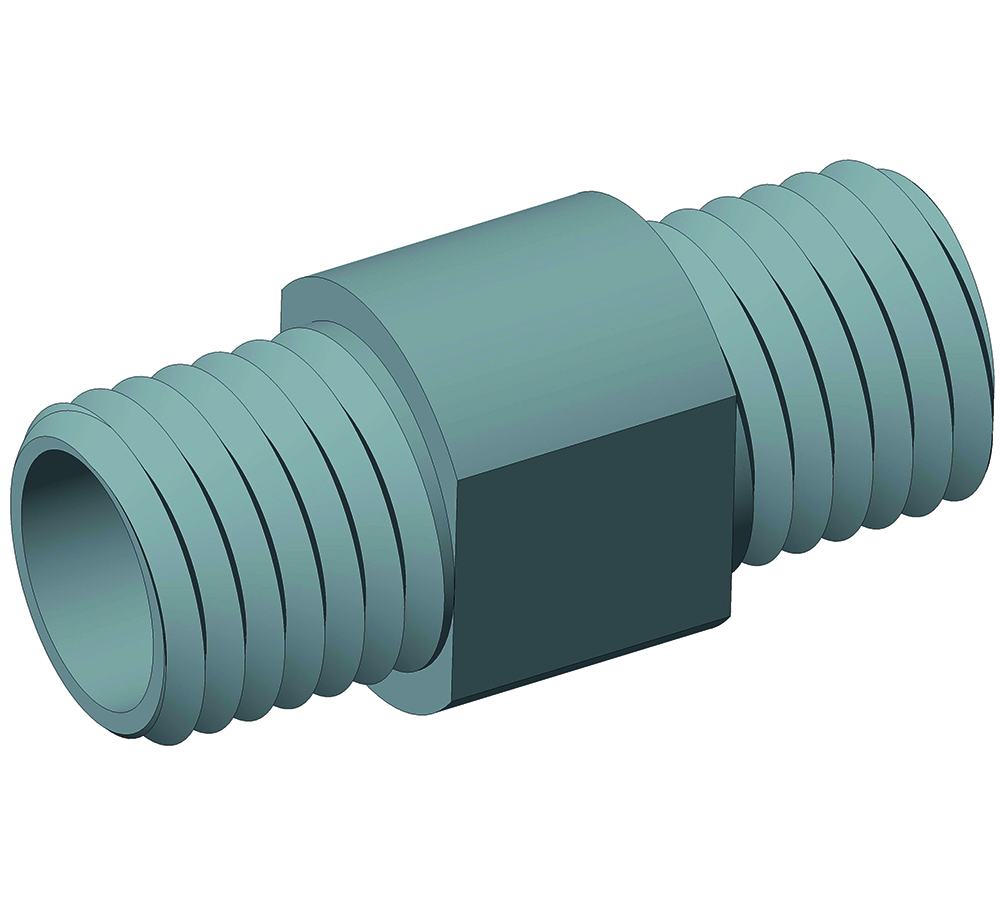

| 010122242 | Screw socket, M8x1 / M8x1 (set of 4) |
|
|

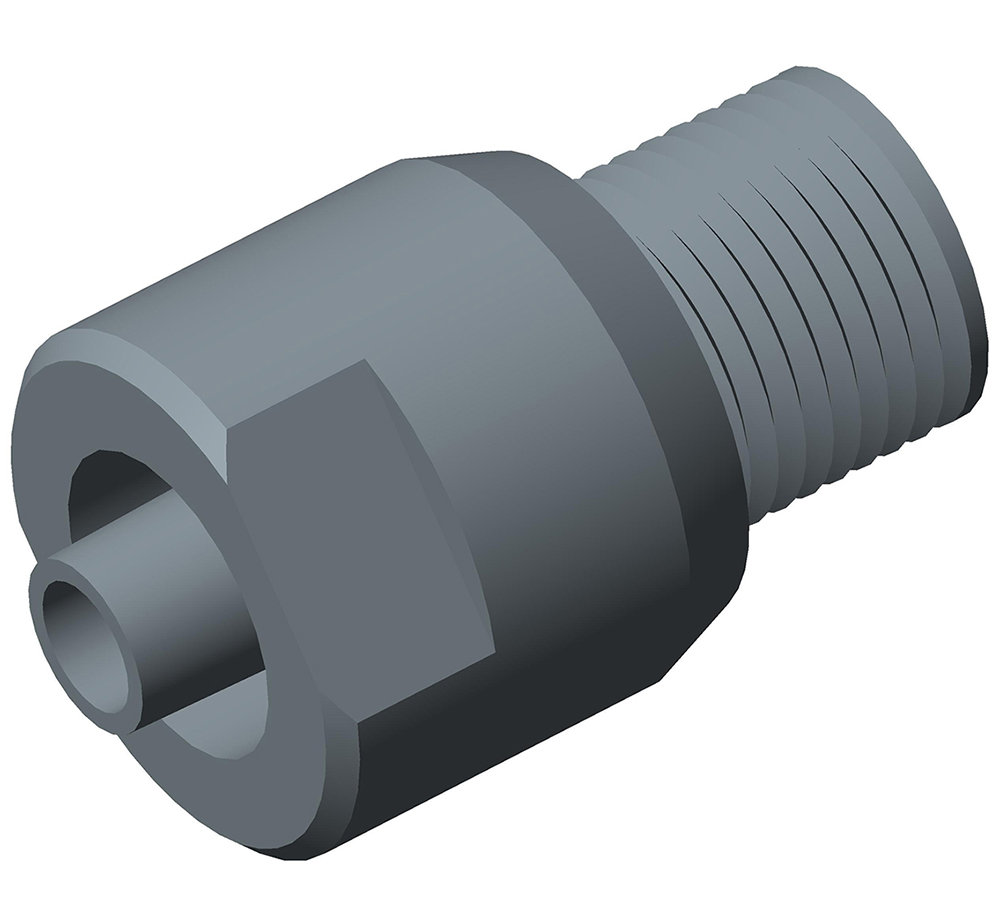

| 010118618 | Luer Lock, female, for øi 6 mm tube (set of 5) |
|
|
| 010109361 | Luer Lock, female, for øi 5 mm tube (set of 5) |
|
|
| 010541438 | AN nozzle attachment, 18 mm, M12 (set of 2) |
|
|
| 010511070 | Nozzle with side holes (set of 2) øo 8 x 340, M8x1 |
|
|
| 010122243 | Nozzle with side holes (set of 4) øo 4 x 40, M8x1 |
|
|
| 010125201 | Nozzle with side holes (set of 4) øo 3 x 120, M8x1 |
|
|
| 010511094 | Nozzle with side holes (set of 2) øo 8 x 290, M8x1 |
|
|
| 010548183 | Nozzle with side holes (set of 2) øo 8 x 220, M8x1 |
|
|
| 010505004 | Nozzle with side holes (set of 2) øo 8 x 150, M8x1 |
|
|
| 010125202 | Nozzle with side holes (set of 4) øo 3 x 70, M8x1 |
|
|
| 010505012 | Nozzle with side holes (set of 2) øo 6 x 250, M8x1 |
|
|
| 010125203 | Nozzle with side holes (set of 4) øo 3 x 40, M8x1 |
|
|
| 010507812 | Nozzle with side holes (set of 2) øo 6 x 150, M8x1 |
|
|
| 010505007 | Nozzle with side holes (set of 2) øo 6 x 50, M8x1 |
|
|
| 010122244 | Nozzle with side holes (set of 4) øo 4 x 70, M8x1 |
|
|
| 010122245 | Nozzle with side holes (set of 4) øo 4 x 120, M8x1 |
|
|
| 010541433 | Rinsing holder seal, ø 25 (set of 5) |
|
|
| 010543378 | Rinsing holder disc, ø 25 (set of 5) |
|
|

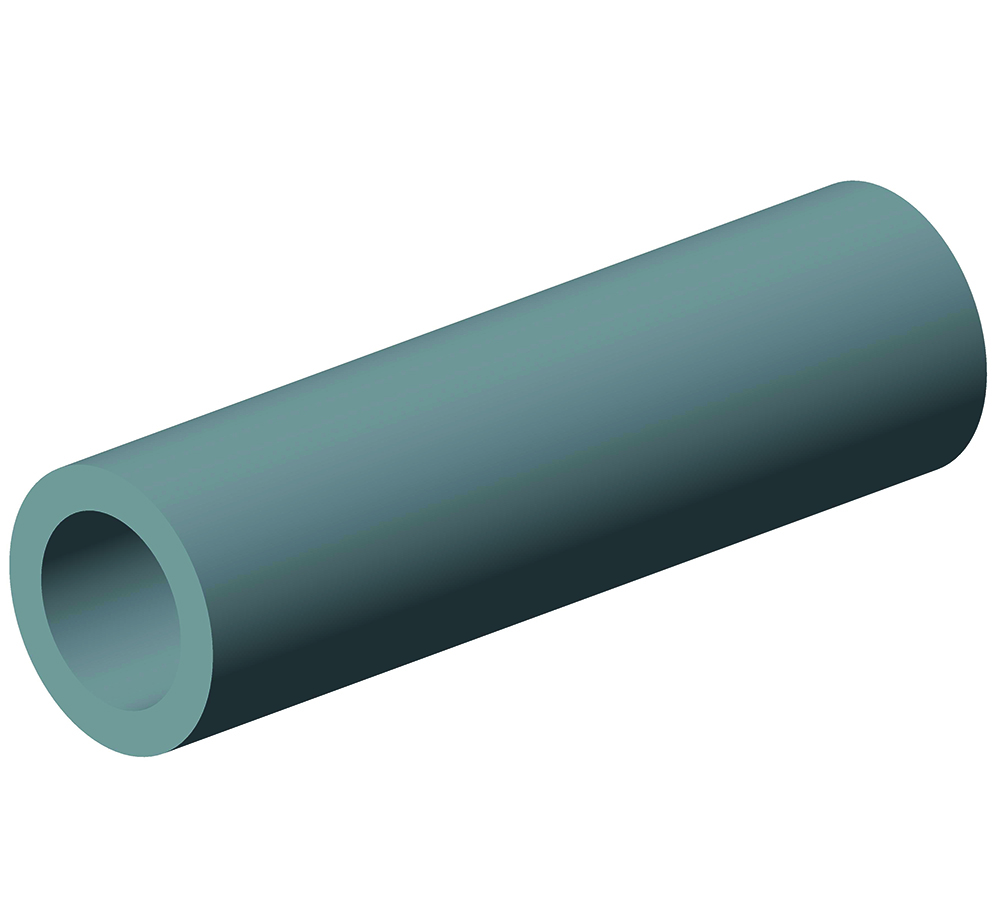

| 010505019 | Silicone tube, 6 x 1.5 x 500 mm |
|
|
| 010531816 | Silicone tube 1 x 0.5 x 1000 mm |
|
|
| 010505018 | Silicone tube 3 x 1.5 x 1000 mmSilicone tube 3 x 1.5 x 1000 mm |
|
|
| 010543377 | Rinsing holder cap, ø 16 (set of 2) |
|
|
| 010505013 | Nozzle adapter, M8x1 (set of 5) |
|
|
| 010508902 | Nozzle spacer, 68 mm |
|
|
| 010508900 | Nozzle spacer, 55 mm |
|
|
| 010127119 | Spring clip, small |
|
|
| 010127117 | Spring clip, large |
|
|
| 010541455 | Spring clip, large, ø 12 (set of 5) |
|
|
| 010508901 | Nozzle spacer, 21 mm |
|
|

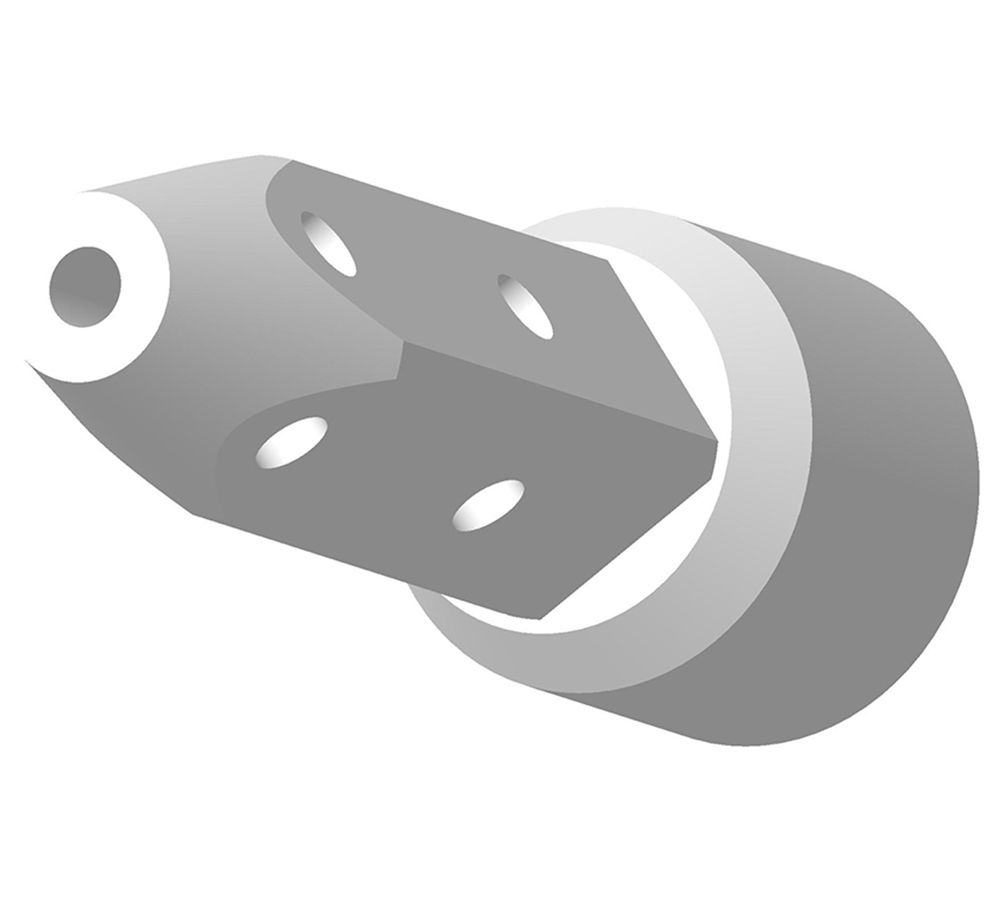

| 010537072 | Nozzle spacer, 9 mm (set of 5) |
|
|
| 010551019 | Double adapter for M8x1 nozzles (set of 2) |
|
|
| 010508903 | Bracket for breathing bag (set of 2) |
|
|
| 010541443 | AN nozzle attachment, 9 mm, M8x1 (set of 2) |
|
|
| 010541441 | AN nozzle attachment, 18 mm, M8x1 (set of 2) |
|
|
| 010518982 | Stopper for øi 6 mm nozzle (set of 2) |
|
|
| 010518983 | Stopper for øi 4 mm nozzle (set of 2) |
|
|
| 010518985 | Stopper for øi 3 mm nozzle (set of 2) |
|
|

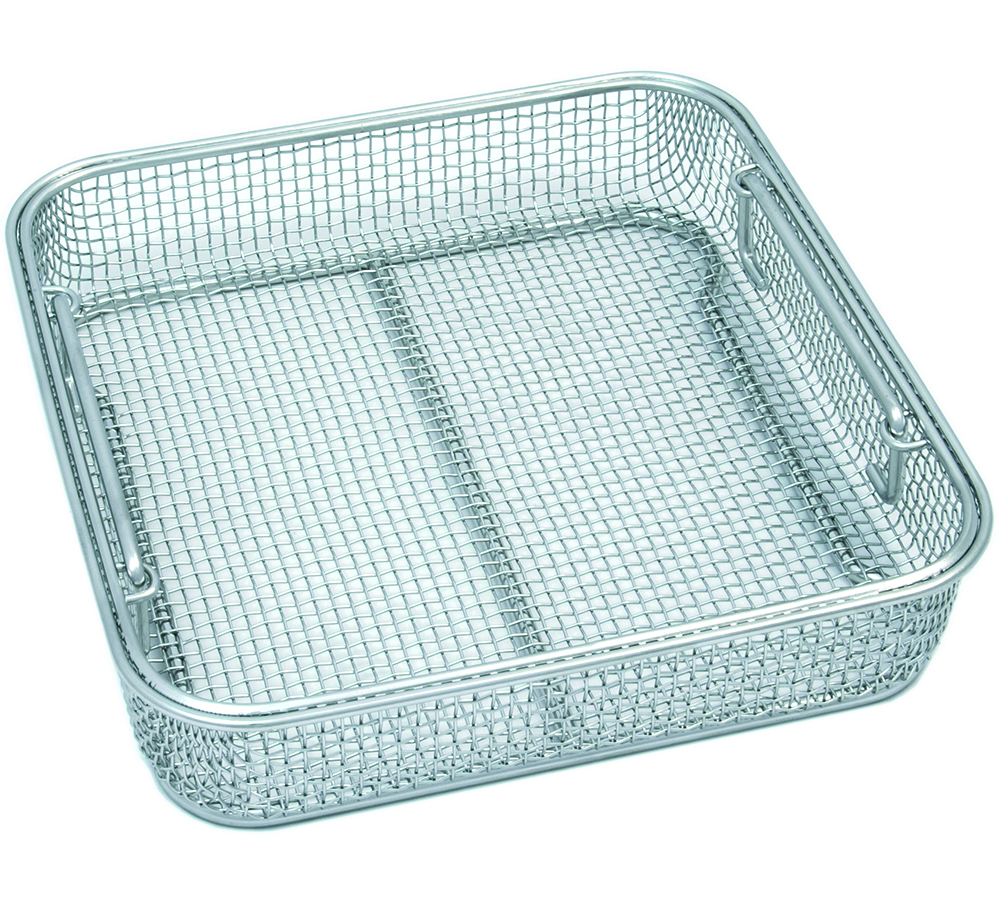

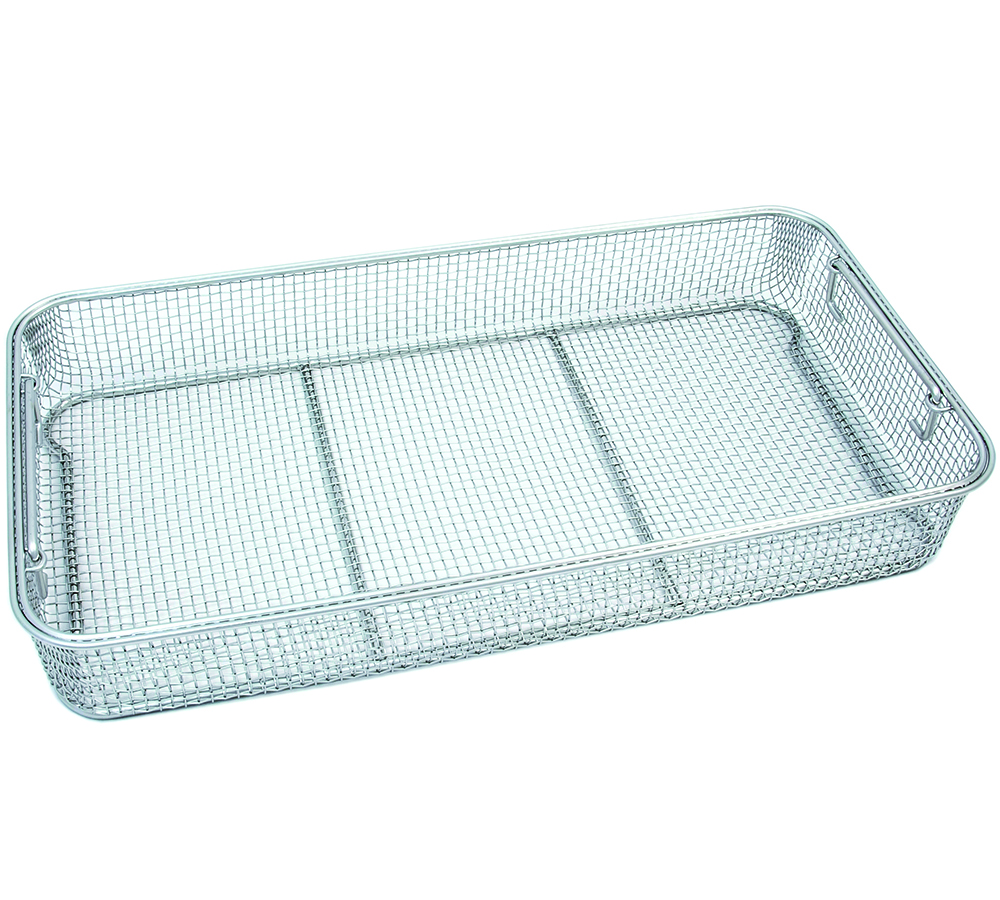

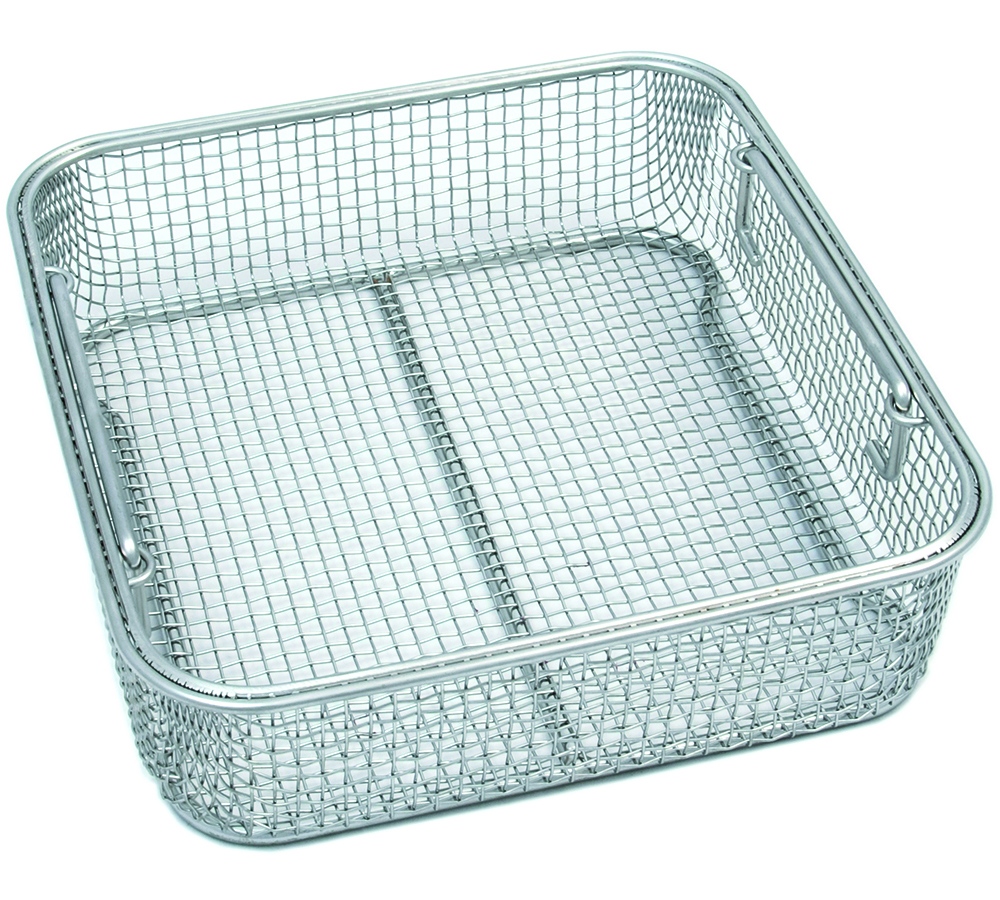

| 010123964 | DIN tray 250 x 485 x 70 mm |
|
|
| 010123962 | DIN tray 250 x 485 x 50 mm |
|
|
| 010123965 | DIN tray 250 x 245 x 70 mm |
|
|
| 010123963 | DIN tray 250 x 245 x 50 mm |
|
|

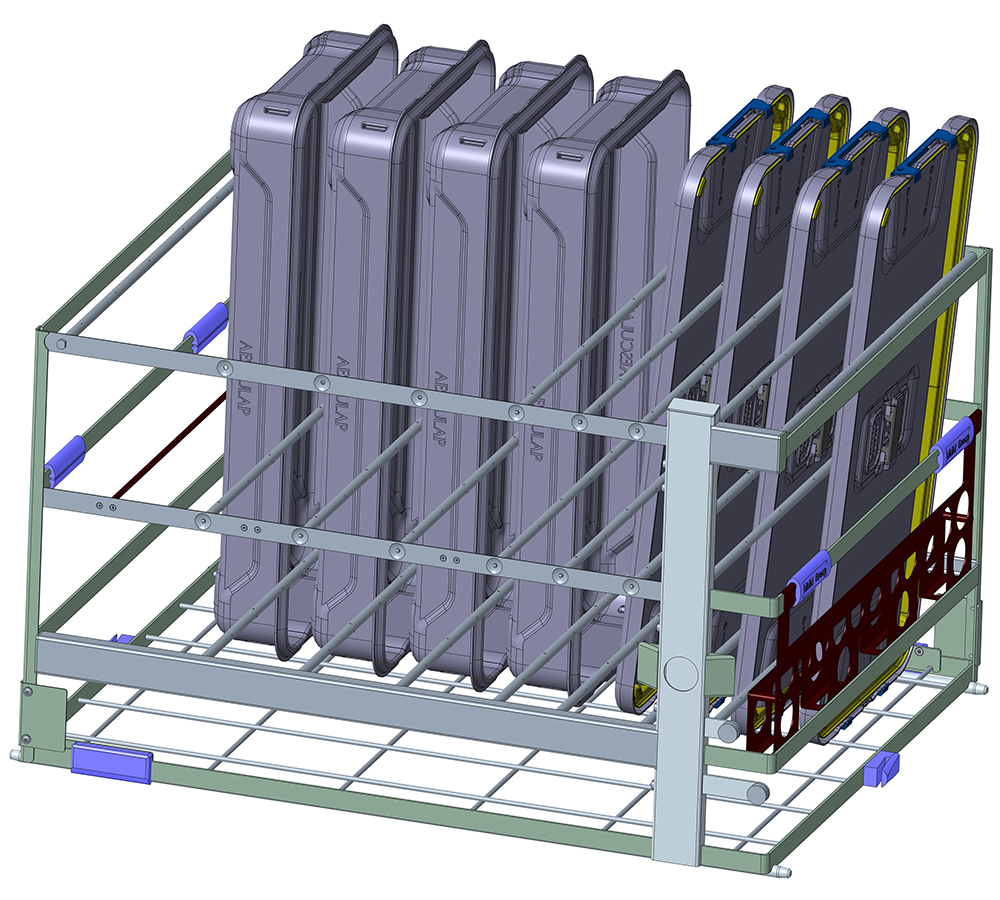

| 010612828-01 | Rack Container flex, 4 x AESCULAP Aicon container with lid and insert for filter holder |
|
|

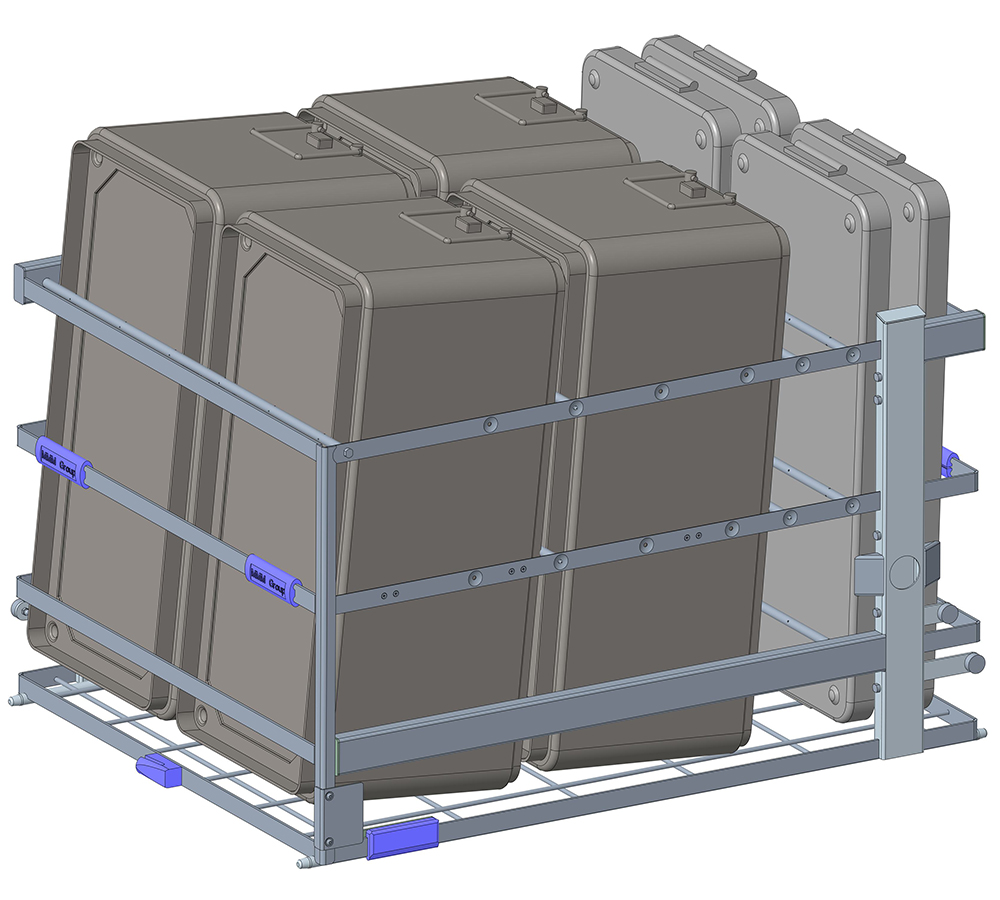

| 010612828-02 | Rack Container flex, 4 x 1 StU container with lid |
|
|

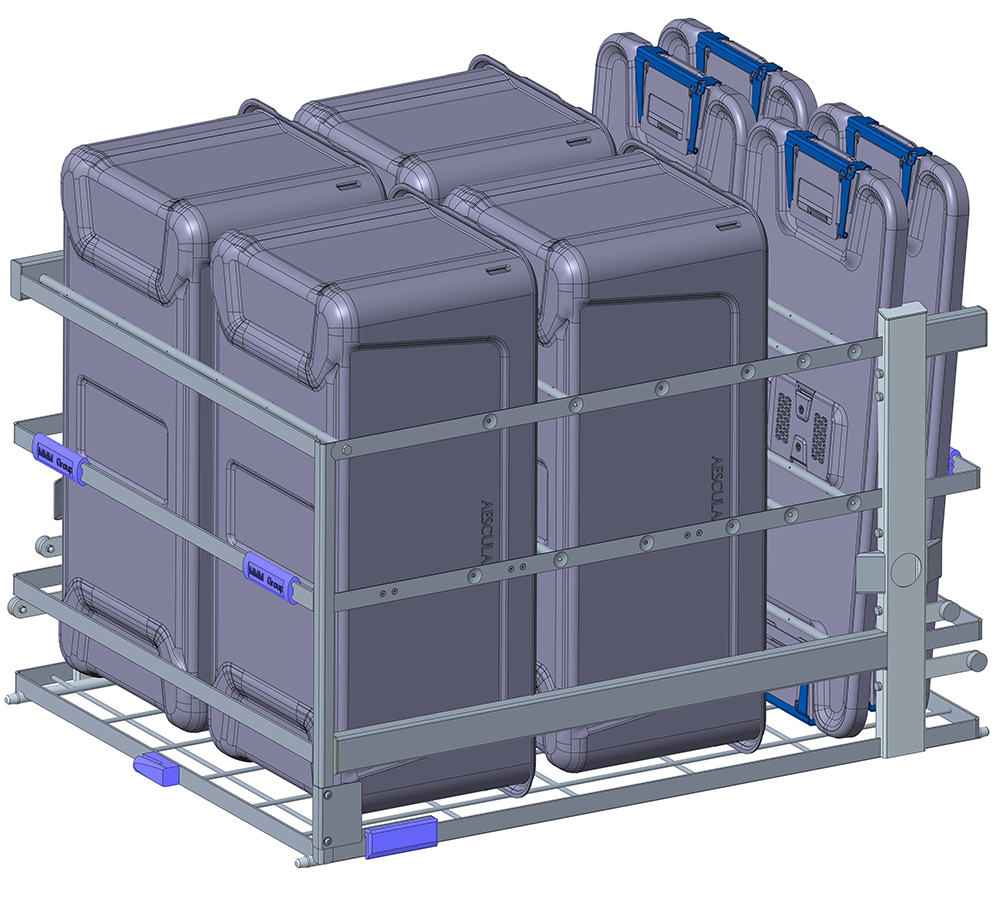

| 010612828-03 | Rack Container flex, 4 x AESCULAP Aicon container with lid |
|
|

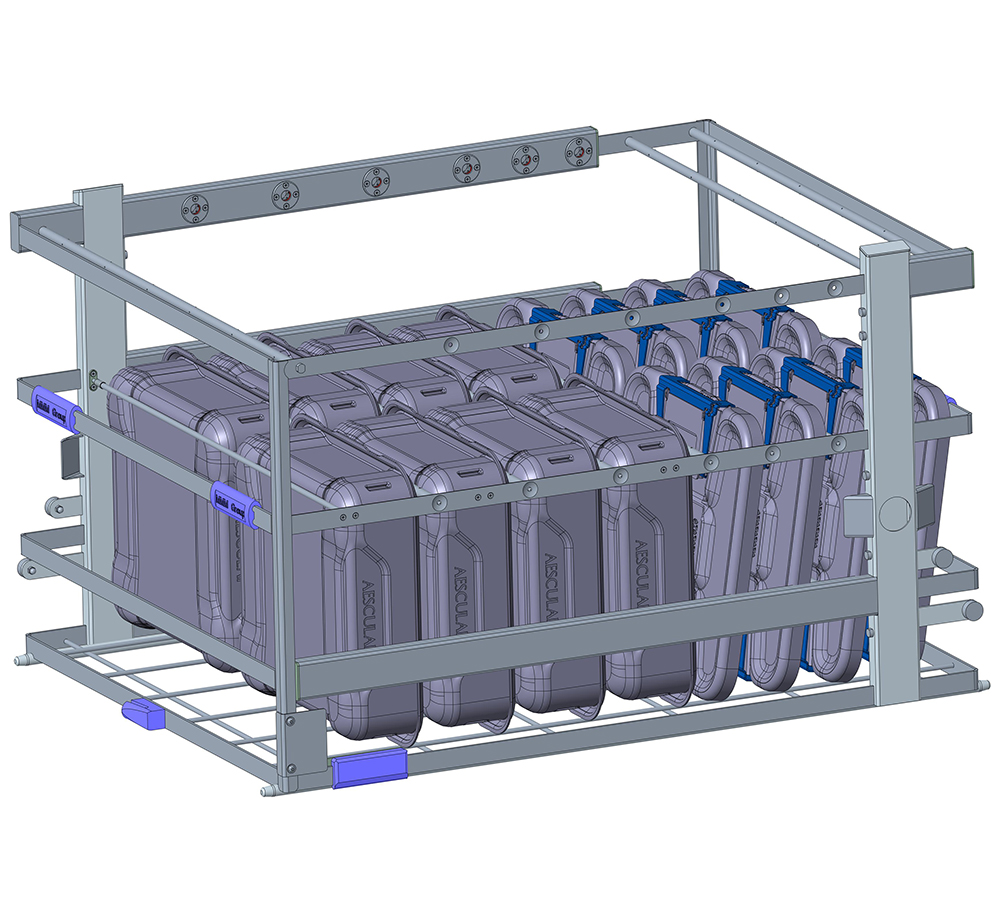

| 010612828-04 | Rack Container flex, 8 x AESCULAP Aicon container with lid |
|
|

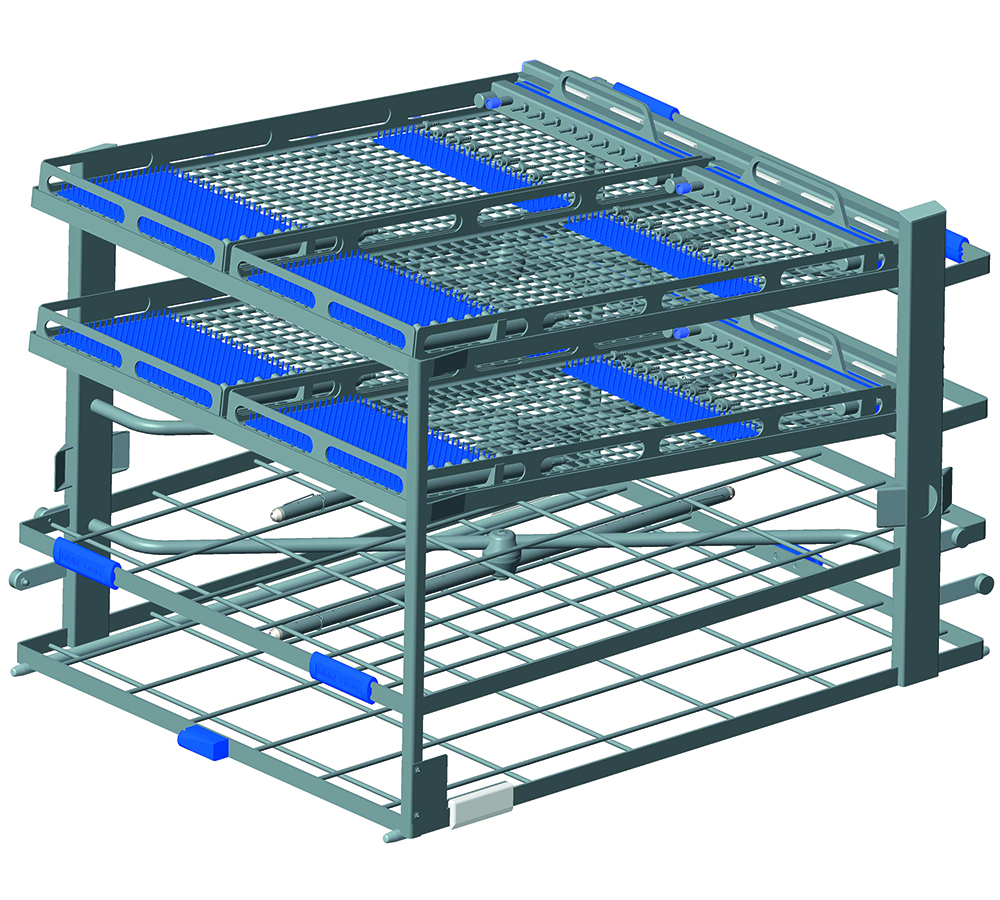

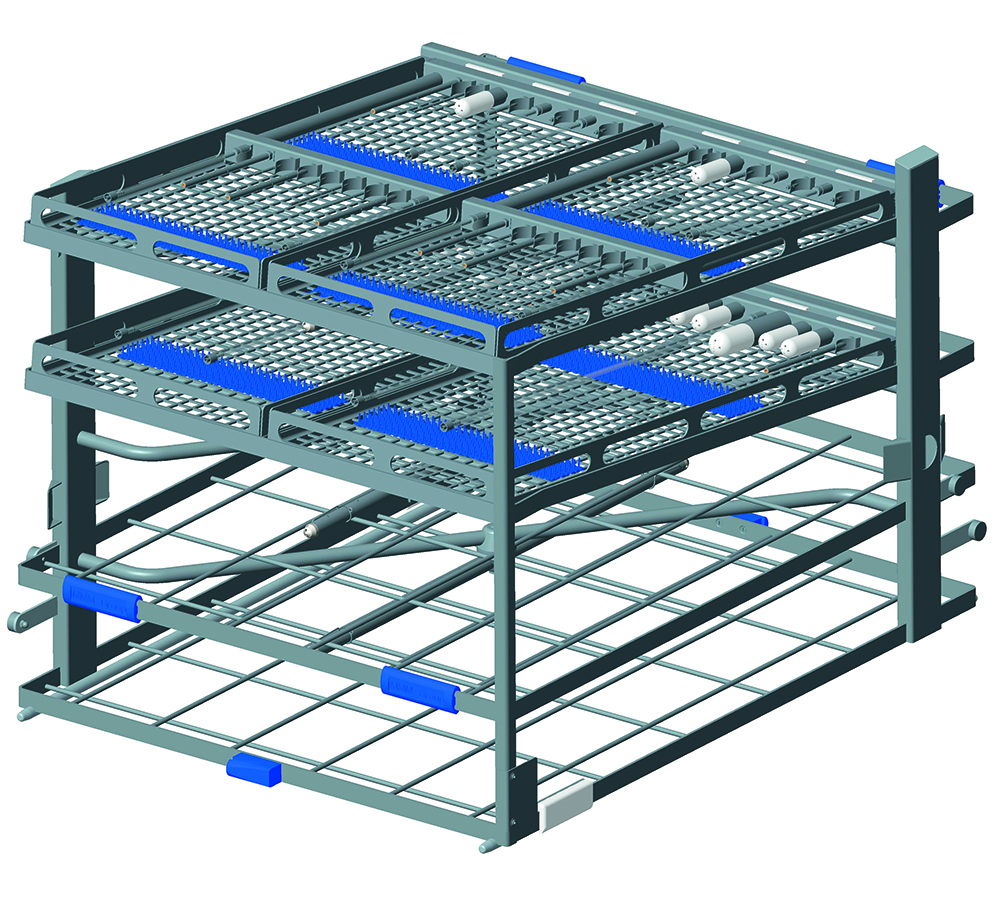

| 010548421 | MIC/eye rack 2 module levels with 4 MIS eye modules long 010508031 |
|
|
| 010548421 | MIC/eye rack 2 module levels with 2 MIS modules long 010508028 and 2 MIS modules short 010508029 |
|
|

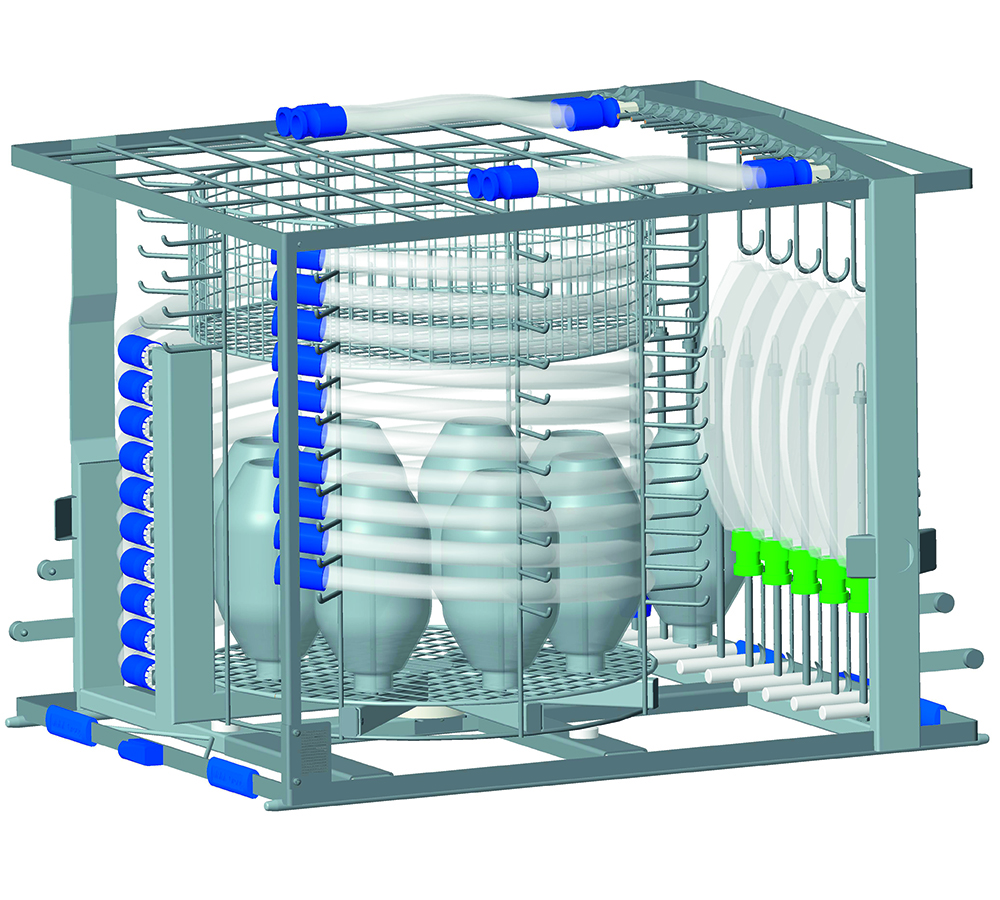

| 010109332 | Anesthetic drum rack consisting of max. 26 breathing tubes |
|
|

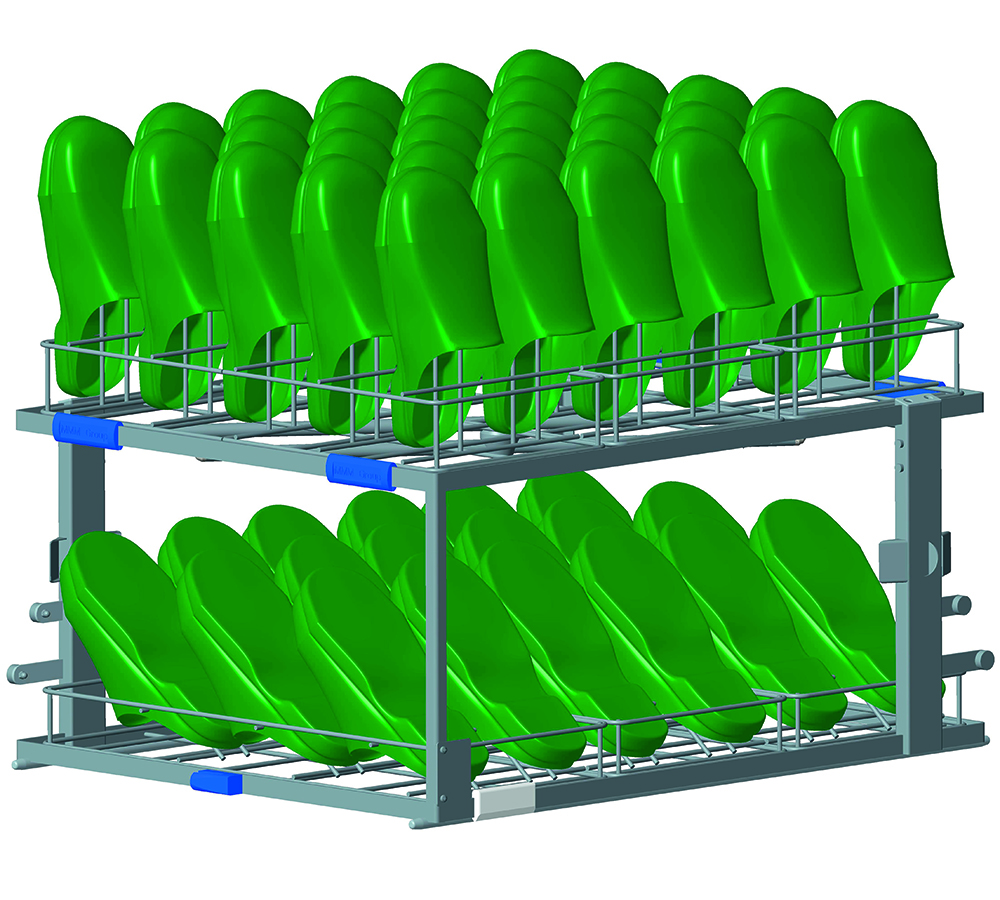

| 010109311 | Rack, 2-level with 3 inserts for OR shoes up to size 48 (010109344) and 3 inserts up to size 42 (010109345) |
|
|
| 010508720 | Flex rack, 4-level for UPL configuration without top level |
|
|

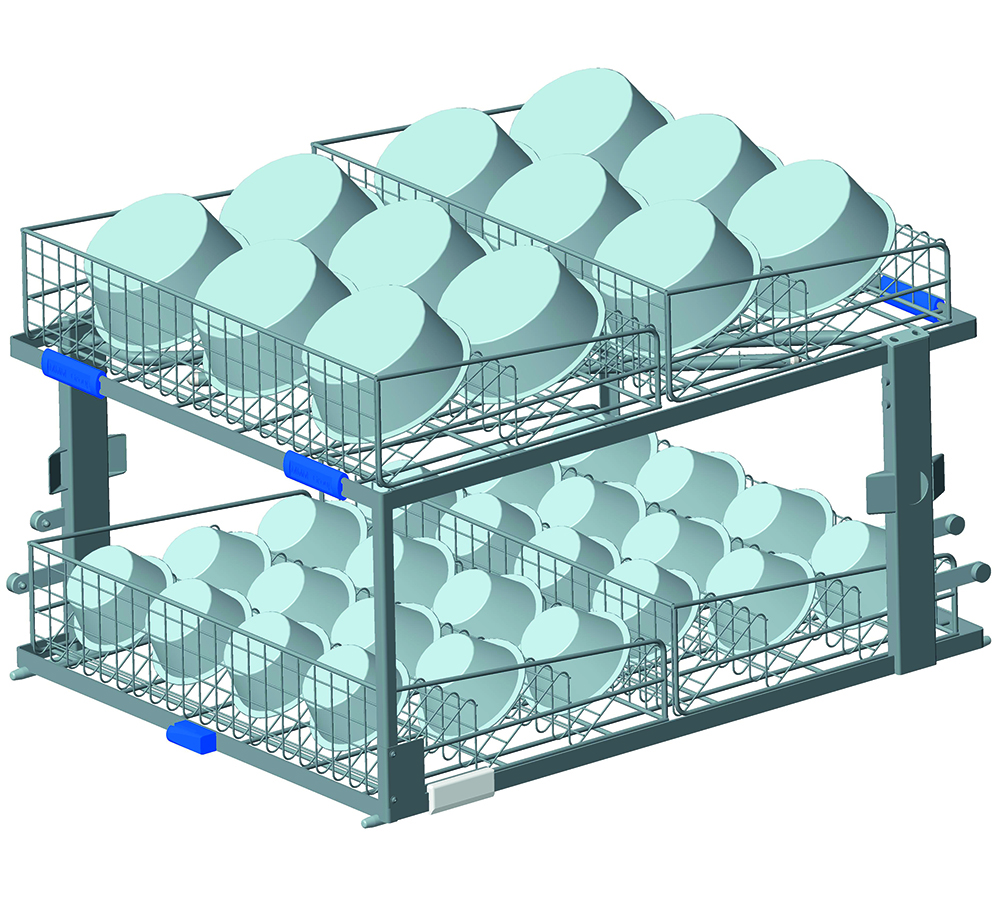

| 010109311 | Rack, 2-level with 2 insert modules for 125 ml bowls (010109344) and 2 for 200 ml bowls (010109345) |
|
|

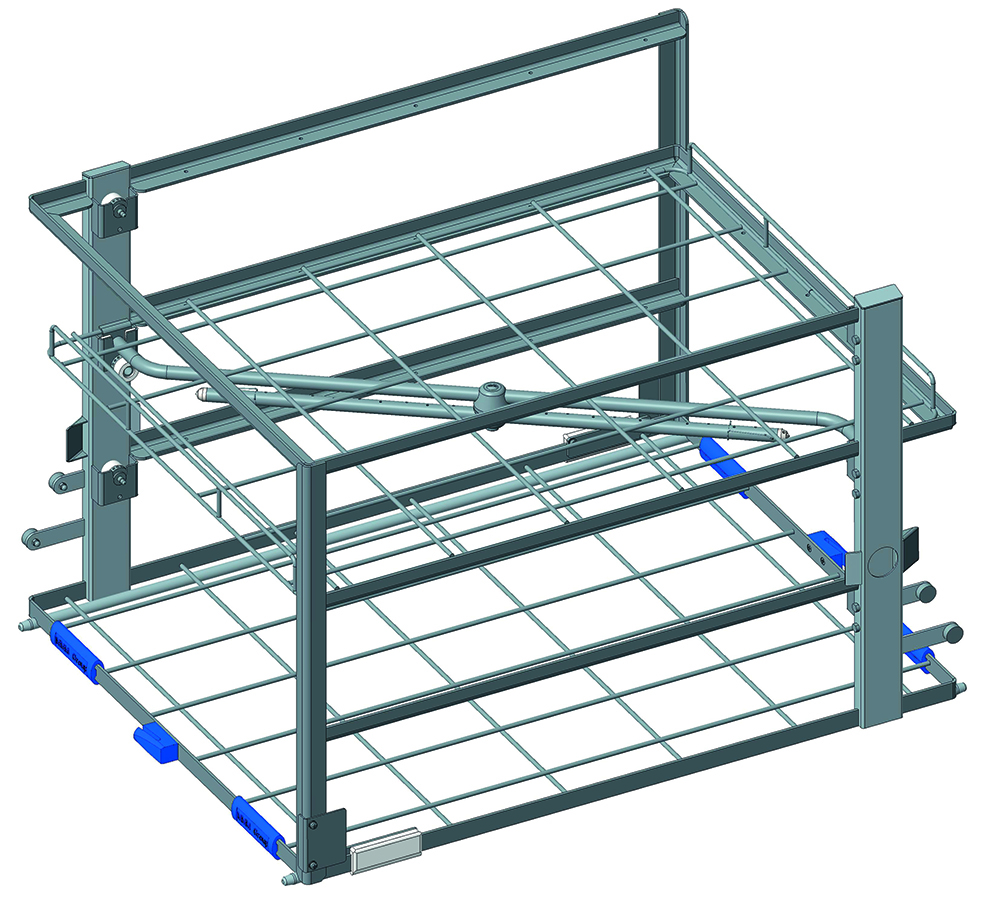

| 010508720 | Flex rack, 4-level, 1 level in the middle |
|
|
| 010508720 | Flex rack, 4-level without bottom level, 3 insert modules for kidney basins 010109343 I 3 insert modules OR lamp handles (010109346), 2 insert modules 125 ml bowls (010109344). 2 insert modules 200 ml bowls (010109344) |
|
|
| 010508720 | Flex rack, 4-level, Basic rack with 3 level grids for 12 DIN instrument trays |
|
|
| 010531520 | Dental rack, 2-level, 2 ISO dental modules (010539672) and 2 insert module for small DIN trays with lid (010531553) |
|
|
| 010531552 | Dental rack, 3-level with 2 ISO dental modules (010539672) |
|
